#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include <string.h>
#include <gsl/gsl_matrix.h>
#include <gsl/gsl_linalg.h>
#include <gsl/gsl_spline.h>
#include <gsl/gsl_errno.h>
#include "ccl.h"
#include "ccl_emu17_params.h"
#include "ccl_emu17.h"

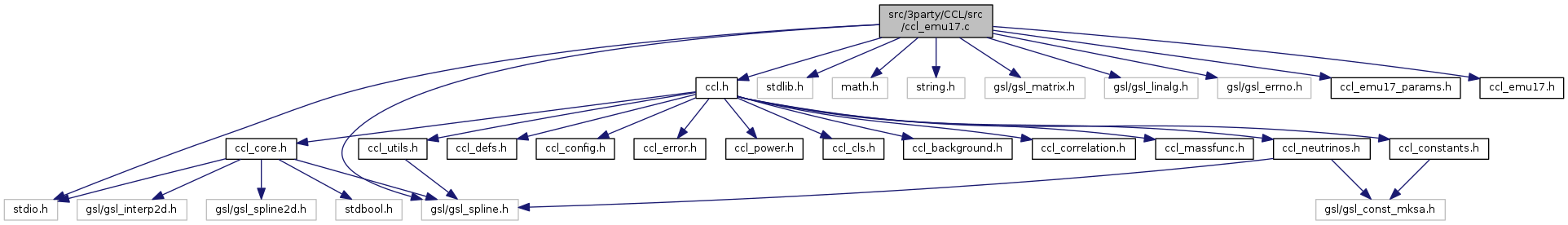

Include dependency graph for ccl_emu17.c:

Functions
static void	emuInit ()

void	ccl_pkemu (double xstar, double ystar, int status, ccl_cosmology *cosmo)

Variables
static int	m [2] = {111, 36}

static int	neta =2808

static int	peta [2] ={7, 28}

static int	rs =8

static int	p =8

static double	KrigBasis [2][28][111]

static double	beta [2][28][8]

static double	w [2][28][111]

static double	lamws [2][28]

static double	lamz [2][28]

Function Documentation

void ccl_pkemu	(	double *	xstarin,
		double **	Pkemu,
		int *	status,
		ccl_cosmology *	cosmo
	)

Emulator power spectrum Obtain P(k,z) [Mpc^3] for a given set of input parameters.

Parameters

xstarin	vector of input parameters for the emulator, including redshift.
Pkemu	output P(k,z) power spectrum
status	Status flag. 0 if there are no errors, nonzero otherwise.
cosmo	Cosmology parameters and configurations (only relevant for storing status)

Definition at line 141 of file ccl_emu17.c.

References beta, ccl_cosmology_set_status_message(), CCL_ERROR_EMULATOR_BOUND, ccl_raise_exception(), emuInit(), K, KrigBasis, lamz, m, M_PI, mean, mode, neta, NK_EMU, p, peta, pow(), rs, sd, ccl_cosmology::status_message, x, xmax, xmin, xrange, and z.

Referenced by ccl_cosmology_compute_power_emu().

                                                                                  {

     static double inited=0;
     int ee, i, j, k;
     double wstar[peta[0]+peta[1]];
     double Sigmastar[2][peta[1]][m[0]];
     double ystaremu[neta];
     *ystar=(double *)malloc(sizeof(double)*NK_EMU);
     double ybyz[rs];
     double logc;
     double xstarstd[p];
     int zmatch;
     gsl_spline *zinterp = gsl_spline_alloc(gsl_interp_cspline, rs);
     gsl_interp_accel *accel = gsl_interp_accel_alloc();


     // Initialize if necessary
     if(inited==0) {
         emuInit();
         inited = 1;
     }

     // Transform w_a into (-w_0-w_a)^(1/4)
     xstar[6] = pow(-xstar[5]-xstar[6], 0.25);
     // Check the inputs to make sure we're interpolating.
     for(i=0; i<p; i++) {
         if((xstar[i] < xmin[i]) || (xstar[i] > xmax[i])) {
             switch(i) {
                 case 0:
                     ccl_cosmology_set_status_message(cosmo,
                             "ccl_pkemu(): omega_m must be between %f and %f.\n",
                             xmin[i], xmax[i]);
                     break;
                 case 1:
                     ccl_cosmology_set_status_message(cosmo,
                             "ccl_pkemu(): omega_b must be between %f and %f.\n",
                             xmin[i], xmax[i]);
                     break;
                 case 2:
                     ccl_cosmology_set_status_message(cosmo,
                             "ccl_pkemu(): sigma8 must be between %f and %f.\n",
                             xmin[i], xmax[i]);
                     break;
                 case 3:
                     ccl_cosmology_set_status_message(cosmo,
                             "ccl_pkemu(): h must be between %f and %f.\n",
                             xmin[i], xmax[i]);
                     break;
                 case 4:
                     ccl_cosmology_set_status_message(cosmo,
                             "ccl_pkemu(): n_s must be between %f and %f.\n",
                             xmin[i], xmax[i]);
                     break;
                 case 5:
                     ccl_cosmology_set_status_message(cosmo,
                             "ccl_pkemu(): w_0 must be between %f and %f.\n",
                             xmin[i], xmax[i]);
                     break;
                 case 6:
                     ccl_cosmology_set_status_message(cosmo,
                             "ccl_pkemu(): (-w_0-w_a)^(1/4) must be between %f and %f.\n",
                             xmin[i], xmax[i]);
                     break;
                 case 7:
                     ccl_cosmology_set_status_message(cosmo,
                             "ccl_pkemu(): omega_nu must be between %f and %f.\n",
                             xmin[i], xmax[i]);
                     break;
             }
             *status = CCL_ERROR_EMULATOR_BOUND;
             ccl_raise_exception(*status, cosmo->status_message);
         gsl_spline_free(zinterp);
         gsl_interp_accel_free(accel);
             return;
         }
     } // for(i=0; i<p; i++)
     if((xstar[p] < z[0]) || (xstar[p] > z[rs-1])) {
         ccl_cosmology_set_status_message(cosmo,
                 "ccl_pkemu(): z must be between %f and %f.\n",
                 z[0], z[rs-1]);
         *status = CCL_ERROR_EMULATOR_BOUND;
         ccl_raise_exception(*status, cosmo->status_message);
     gsl_spline_free(zinterp);
     gsl_interp_accel_free(accel);
         return;
     }

     // Standardize the inputs
     for(i=0; i<p; i++) {
         xstarstd[i] = (xstar[i] - xmin[i]) / xrange[i];
     }

     // compute the covariances between the new input and sims for all the PCs.
     for(ee=0; ee<2; ee++) {
         for(i=0; i<peta[ee]; i++) {
             for(j=0; j<m[ee]; j++) {
                 logc = 0.0;
                 for(k=0; k<p; k++) {
                     logc -= beta[ee][i][k]*pow(x[j][k] - xstarstd[k], 2.0);
                 }
                 Sigmastar[ee][i][j] = exp(logc) / lamz[ee][i];
             }
         }
     }

     // Compute wstar for the first chunk.
     for(i=0; i<peta[0]; i++) {
         wstar[i]=0.0;
         for(j=0; j<m[0]; j++) {
             wstar[i] += Sigmastar[0][i][j] * KrigBasis[0][i][j];
         }
     }
     // Compute wstar for the second chunk.
     for(i=0; i<peta[1]; i++) {
         wstar[peta[0]+i]=0.0;
         for(j=0; j<m[1]; j++) {
             wstar[peta[0]+i] += Sigmastar[1][i][j] * KrigBasis[1][i][j];
         }
     }

     /*
     for(i=0; i<peta[0]+peta[1]; i++) {
         printf("%f\n", wstar[i]);
     }
      */

     // Compute ystar, the new output
     for(i=0; i<neta; i++) {
         ystaremu[i] = 0.0;
         for(j=0; j<peta[0]+peta[1]; j++) {
             ystaremu[i] += K[i][j]*wstar[j];
         }
         ystaremu[i] = ystaremu[i]*sd + mean[i];

         // Convert to P(k)
         //ystaremu[i] = ystaremu[i] - 1.5*log10(mode[i % NK_EMU]);
         //ystaremu[i] = 2*M_PI*M_PI*pow(10, ystaremu[i]);
     }



     // Interpolate to the desired redshift
     // Natural cubic spline interpolation over z.

     // First check to see if the requested z is one of the training z.
     zmatch = -1;
     for(i=0; i<rs; i++) {
         if(xstar[p] == z[i]) {
             zmatch = rs-i-1;
         }
     }

     // z doesn't match a training z, interpolate
     if(zmatch == -1) {
         for(i=0; i<NK_EMU; i++) {
             for(j=0; j<rs; j++) {
                 ybyz[rs-j-1] = ystaremu[j*NK_EMU+i];
             }
             gsl_spline_init(zinterp, z, ybyz, rs);
             (*ystar)[i] = gsl_spline_eval(zinterp, xstar[p], accel);
             gsl_interp_accel_reset(accel);
         }

     } else { //otherwise, copy in the emulated z without interpolating
         for(i=0; i<NK_EMU; i++) {
       (*ystar)[i] = ystaremu[zmatch*NK_EMU + i];
         }
     }

     gsl_spline_free(zinterp);
     gsl_interp_accel_free(accel);

     // Convert to P(k)
     for(i=0; i<NK_EMU; i++) {
       (*ystar)[i] = (*ystar)[i] - 1.5*log10(mode[i]) + log10(2) + 2*log10(M_PI);
       (*ystar)[i] = pow(10, (*ystar)[i]);
     }
 }

static void emuInit ( )

static

Definition at line 38 of file ccl_emu17.c.

References beta, beta1, beta2, KrigBasis, cl_cmbl_bm::l, lamws, lamws1, lamws2, lamz, lamz1, lamz2, m, p, peta, pow(), w, w1, w2, and x.

Referenced by ccl_pkemu().

                       {

     int ee, i, j, k, l;
     double cov;
     gsl_matrix *SigmaSim;
     gsl_vector *b;

     // Because of the structure of this emu, I need to do this horrible part first.
     // Fill in the correlation lenghths
     for(i=0; i<7; i++) {
         for(j=0; j<8; j++) {
             beta[0][i][j] = beta1[i][j];
         }
     }

     for(i=0; i<28; i++) {
         for(j=0; j<8; j++) {
             beta[1][i][j] = beta2[i][j];
         }
     }

     // Fill in the PC weights
     for(i=0; i<7; i++) {
         for(j=0; j<111; j++) {
             w[0][i][j] = w1[i][j];
         }
     }

     for(i=0; i<28; i++) {
         for(j=0; j<36; j++) {
             w[1][i][j] = w2[i][j];
         }
     }

     // Fill in the precisions
     for(i=0; i<7; i++) {
         lamws[0][i] = lamws1[i];
         lamz[0][i] = lamz1[i];
     }

     for(i=0; i<28; i++) {
         lamws[1][i] = lamws2[i];
         lamz[1][i] = lamz2[i];
     }

     // This emu has two parts: one that uses all m[0] of the data for the the first peta[0] components
     // and another that uses only the m[1] complete data for the next peta[1] components.
     for(ee=0; ee<2; ee++) {

         // Allocate some stuff
         SigmaSim = gsl_matrix_alloc(m[ee], m[ee]);
         b = gsl_vector_alloc(m[ee]);

         // Loop over the basis
         for(i=0; i<peta[ee]; i++) {

             // Loop over the number of simulations
             for(j=0; j<m[ee]; j++) {

                 // Diagonal term
                 gsl_matrix_set(SigmaSim, j, j, (1.0/lamz[ee][i]) + (1.0/lamws[ee][i]));

                 // Off-diagonals
                 for(k=0; k<j; k++) {

                     // compute the covariance
                     cov = 0.0;
                     for(l=0; l<p; l++) {
                         cov -= beta[ee][i][l]*pow(x[j][l] - x[k][l], 2.0);
                     } // for(l=0; l<p; l++)
                     cov = exp(cov) / lamz[ee][i];

                     // put the covariance where it belongs
                     gsl_matrix_set(SigmaSim, j, k, cov);
                     gsl_matrix_set(SigmaSim, k, j, cov);

                 } // for(k=0; k<j; k++)

                 // Vector for the PC weights
                 gsl_vector_set(b, j, w[ee][i][j]);

             } // for(j=0; j<m[ee]; j++)

             // Cholesky and solve
             gsl_linalg_cholesky_decomp(SigmaSim);
             gsl_linalg_cholesky_svx(SigmaSim, b);

             // Put b where it belongs in the Kriging basis
             for(j=0; j<m[ee]; j++) {
                 KrigBasis[ee][i][j] = gsl_vector_get(b, j);
             }

         } // for(i=0; i<peta[ee]; i++)

         // Clean this up
         gsl_matrix_free(SigmaSim);
         gsl_vector_free(b);

     } // for(ee=0; ee<2; ee+)

 } // emuInit()

Variable Documentation

double beta[2][28][8]

static

Definition at line 32 of file ccl_emu17.c.

Referenced by ccl_cosmology_compute_hmfparams(), ccl_create_Smail_dNdz_info(), ccl_j_bessel(), ccl_pkemu(), dNdz_smail(), emuInit(), main(), and user_pz_probability().

double KrigBasis[2][28][111]

static

Definition at line 29 of file ccl_emu17.c.

Referenced by ccl_pkemu(), and emuInit().

double lamws[2][28]

static

Definition at line 34 of file ccl_emu17.c.

Referenced by emuInit().

double lamz[2][28]

static

Definition at line 35 of file ccl_emu17.c.

Referenced by ccl_pkemu(), and emuInit().

int m[2] = {111, 36}

static

Definition at line 25 of file ccl_emu17.c.

Referenced by __ctest_spacing_tests_linear_spacing_simple_run(), __ctest_spacing_tests_linlog_spacing_simple_run(), __ctest_spacing_tests_log_spacing_simple_run(), ccl_cosmology_compute_sigma(), ccl_pkemu(), compare_sigmam(), compute_u_coefficients(), emuInit(), fht(), Extrap_Pk< T, N >::fit_lin(), Extrap_Pk< T, N >::fit_power_law(), anonymous_namespace{mod_frozen_potential.cpp}::force_short(), get_rho_from_par(), get_vel_from_par(), nlohmann::detail::dtoa_impl::grisu2_digit_gen(), MultiGridSolver< NDIM, T >::prolonge_up_array(), and nlohmann::detail::exception::what().

int neta =2808

static

Definition at line 25 of file ccl_emu17.c.

Referenced by ccl_pkemu().

int p =8

static

int peta[2] ={7, 28}

static

Definition at line 25 of file ccl_emu17.c.

Referenced by ccl_pkemu(), and emuInit().

int rs =8

static

Definition at line 25 of file ccl_emu17.c.

Referenced by ccl_pkemu(), App_Opt::init(), and u_nfw_c().

double w[2][28][111]

static

Definition at line 33 of file ccl_emu17.c.

Referenced by assign_from(), assign_to(), ccl_angular_cl_native(), ccl_cl_workspace_new(), ccl_tracer_corr_bessel(), clt_init_nz(), compare_cls(), compute_wt_single(), nlohmann::detail::parse_error::create(), nlohmann::detail::invalid_iterator::create(), nlohmann::detail::type_error::create(), nlohmann::detail::out_of_range::create(), nlohmann::detail::other_error::create(), emuInit(), Extrap_Pk< T, N >::fit_lin(), Extrap_Pk< T, N >::fit_power_law(), nlohmann::detail::dtoa_impl::grisu2(), init_params(), anonymous_namespace{core_power.cpp}::Integr_obj::Integr_obj(), lngamma_4(), main(), one_halo_integral(), anonymous_namespace{core_power.cpp}::Integr_obj_qag::operator()(), anonymous_namespace{core_power.cpp}::Integr_obj_qagiu::operator()(), anonymous_namespace{core_power.cpp}::Integr_obj_qawo::operator()(), anonymous_namespace{core_power.cpp}::Integr_obj_qawf::operator()(), anonymous_namespace{core_power.cpp}::sigma_integrand_G(), sigmaR_integrand(), sigmaV_integrand(), spectra(), transfer_cmblens(), transfer_lensing(), transfer_magnification(), two_halo_integral(), w_tophat(), wgh_sch< 1 >(), wgh_sch< 2 >(), window_lensing(), window_magnification(), and anonymous_namespace{core_power.cpp}::Integr_obj::~Integr_obj().
