poisson.cpp File Reference

#include <complex>
#include <fstream>
#include <iostream>
#include <fftw3.h>
#include "poisson_solver.h"

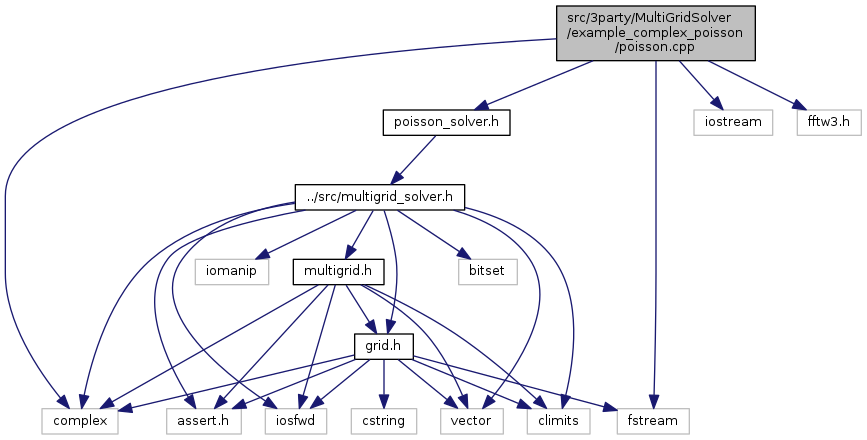

Include dependency graph for poisson.cpp:

Go to the source code of this file.

Macros
#define	_NDIM   1

Typedefs
typedef std::complex< double >	DType

Functions
void	solve_with_fft (Grid< 1, std::complex< double > > &drho, Grid< 1, std::complex< double > > &sol)
void	solve_with_fft (Grid< 1, double > &drho, Grid< 1, double > &sol)
void	set_rho (MultiGrid< 1, DType > &rho_mg, Grid< 1, DType > &analytical_solution)
DType	f_analytical (double x)
DType	laplacian_f_analytical (double x)
int	main (int argv, char **argc)

Macro Definition Documentation

#define _NDIM   1

Definition at line 24 of file poisson.cpp.

Referenced by solve_with_fft().

Typedef Documentation

typedef std::complex<double> DType

Definition at line 29 of file poisson.cpp.

Function Documentation

std::complex< double > f_analytical

(

double

x

)

Definition at line 44 of file poisson.cpp.

Referenced by set_rho().

                                         {
  const double pi = std::acos(-1);
  const std::complex<double> I(0, 1);
  return std::exp(2.0 * pi * I * x);
}

std::complex< double > laplacian_f_analytical

(

double

x

)

Definition at line 50 of file poisson.cpp.

Referenced by set_rho().

                                                   {
  const double pi = std::acos(-1);
  const std::complex<double> I(0, 1);
  return - 4.0 * pi * pi * std::exp(2.0 * pi * I * x);
}

int main	(	int	argv,
		char **	argc
	)

Definition at line 151 of file poisson.cpp.

References MultiGridSolver< NDIM, T >::add_external_grid(), MultiGridSolver< NDIM, T >::clear(), Catch::cout(), MultiGrid< NDIM, T >::get_grid(), MultiGridSolver< NDIM, T >::get_grid(), MultiGridSolver< NDIM, T >::get_N(), Grid< NDIM, T >::rms_norm(), MultiGridSolver< NDIM, T >::set_epsilon(), MultiGridSolver< NDIM, T >::set_ngs_sweeps(), set_rho(), MultiGridSolver< NDIM, T >::solve(), and solve_with_fft().

                                {

  int NgridPerDim = 256;
  bool verbose = true;
  MultiGrid<_NDIM, DType> rho(NgridPerDim);
  Grid<_NDIM, DType> analytical_solution(NgridPerDim);

  // Make density grid
  set_rho(rho, analytical_solution);

  // Set up solver
  PoissonSolver<_NDIM, DType> sol(NgridPerDim, verbose);

  // Add pointer to the source grid to the solver
  sol.add_external_grid(&rho);

  // Set options
  sol.set_epsilon(1e-10);
  sol.set_ngs_sweeps(2,2);

  // Solve the equation
  sol.solve();

  // Copy over solution
  Grid<_NDIM, DType> solution = sol.get_grid();

  // Compute the fractional error wrt the analytical solution
  Grid<_NDIM, DType> err = (solution - analytical_solution) / (analytical_solution) * std::complex<double>(100.0);
  std::cout << "The rms error in the solution: " << err.rms_norm()  << " %" << std::endl;

  Grid<_NDIM,DType> fft_sol = rho.get_grid(0);
  solve_with_fft(rho.get_grid(0), fft_sol);

  // Output solution(s)
  std::ofstream fp("test_poisson_solver_complex.txt");
  int N = sol.get_N(0);
  for(int i = 0; i < N; i++){
    fp << (i+0.5)/double(N) << " " << solution[i].real() << " " << fft_sol[i].real() << " " << analytical_solution[i].real() << std::endl;
  }

  // Clean up all memory
  sol.clear();
}

void set_rho	(	MultiGrid< 1, DType > &	rho_mg,
		Grid< 1, DType > &	analytical_solution
	)

Definition at line 60 of file poisson.cpp.

References Catch::cout(), f_analytical(), MultiGrid< NDIM, T >::get_N(), MultiGrid< NDIM, T >::get_Ntot(), Grid< NDIM, T >::get_y(), MultiGrid< NDIM, T >::get_y(), laplacian_f_analytical(), MultiGrid< NDIM, T >::restrict_down_all(), and sqrt().

Referenced by main().

                                                                                       {
  int N    = rho_mg.get_N();
  int Ntot = rho_mg.get_Ntot();
  DType *rho = rho_mg.get_y(0);
  DType *yanal = analytical_solution.get_y();

  DType rhomean = 0.0;
  for(int i = 0; i < Ntot; i++){
    double xx = ((i % N) + 0.5) / double(N);

    // Set source rho such that solution to D^2 phi = rho is phi = e^{ 2 pi i x}
    rho[i] = laplacian_f_analytical(xx);
    yanal[i] = f_analytical(xx);

    // Box average of rho
    rhomean += rho[i];
  }
  rhomean = rhomean/double(Ntot);
  std::cout << "set_rho :: Box average of source |<rho>| = " << std::sqrt(std::norm(rhomean)) << std::endl;

  // Restrict down source to all levels
  rho_mg.restrict_down_all();
}

void solve_with_fft	(	Grid< 1, std::complex< double > > &	drho,
		Grid< 1, std::complex< double > > &	sol
	)

Definition at line 102 of file poisson.cpp.

References _NDIM.

Referenced by main(), and solve_with_fft().

                                                                                                  {
  int N = drho.get_N(), Nover2 = N/2, Ntot = drho.get_Ntot();

  fftw_complex *in  = reinterpret_cast<fftw_complex*>(drho.get_y());
  fftw_complex *out = reinterpret_cast<fftw_complex*>(sol.get_y());

#if _NDIM == 1
  fftw_plan fwd = fftw_plan_dft_1d(N, in, out, FFTW_FORWARD, FFTW_ESTIMATE);
  fftw_plan bwd = fftw_plan_dft_1d(N, out, out, FFTW_BACKWARD, FFTW_ESTIMATE);
#elif _NDIM == 2
  fftw_plan fwd = fftw_plan_dft_2d(N, N, in, out, FFTW_FORWARD, FFTW_ESTIMATE);
  fftw_plan bwd = fftw_plan_dft_2d(N, N, out, out, FFTW_BACKWARD, FFTW_ESTIMATE);
#elif _NDIM == 3
  fftw_plan fwd = fftw_plan_dft_3d(N, N, N, in, out, FFTW_FORWARD, FFTW_ESTIMATE);
  fftw_plan bwd = fftw_plan_dft_3d(N, N, N, out, out, FFTW_BACKWARD, FFTW_ESTIMATE);
#else
  std::vector<int> inds(_NDIM, N);
  fftw_plan fwd = fftw_plan_dft(_NDIM, &inds[0], in, out, FFTW_FORWARD, FFTW_ESTIMATE);
  fftw_plan bwd = fftw_plan_dft(_NDIM, &inds[0], out, out, FFTW_BACKWARD, FFTW_ESTIMATE);
#endif

  // Transform
  fftw_execute(fwd);

  // Divide by laplacian and normalize
  double fac = -1.0 / ( 4.0 * std::acos(-1) * std::acos(-1) * double(Ntot) );
  for(int i = 0; i < Ntot; i++){
    double k2 = 0.0;
    int ind = 0;
    for(int j = 0, Npow = 1; j < _NDIM; j++, Npow *= N){
      int coord = i / Npow % N;
      int kval = coord < Nover2 ? coord : coord - N;
      k2 += kval * kval;
      ind += coord * Npow;
    }
    if(i > 0){
      double facnow = fac/k2;
      out[ind][0] *= facnow;
      out[ind][1] *= facnow;
    } else {
      out[0][0] = 0.0;
      out[0][1] = 0.0;
    }
  }

  // Transform back
  fftw_execute(bwd);
}

void solve_with_fft	(	Grid< 1, double > &	drho,
		Grid< 1, double > &	sol
	)

Definition at line 88 of file poisson.cpp.

References Grid< NDIM, T >::get_Ntot(), and solve_with_fft().

                                                                        {
  int Ntot = drho.get_Ntot();
  Grid<_NDIM, std::complex<double> > drho_complex (Ntot);
  Grid<_NDIM, std::complex<double> > sol_complex (Ntot);
  for(int i = 0; i < Ntot; i++){
    drho_complex[i] = drho[i];
    sol_complex[i] = drho[i];
  }
  solve_with_fft(drho_complex, sol_complex);
  for(int i = 0; i < Ntot; i++){
    sol[i] = sol_complex[i].real();
  }
}
