ccl_power.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include <gsl/gsl_integration.h>
#include <gsl/gsl_interp.h>
#include <gsl/gsl_spline.h>
#include <gsl/gsl_errno.h>
#include <class.h>
#include "ccl.h"
#include "ccl_params.h"
#include "ccl_emu17.h"
#include "ccl_emu17_params.h"

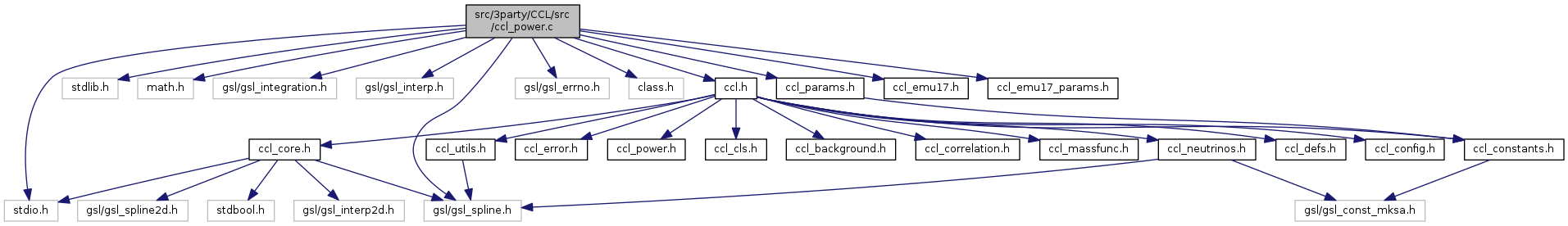

Include dependency graph for ccl_power.c:

Go to the source code of this file.

Classes
struct	eh_struct
struct	SigmaR_pars
struct	SigmaV_pars

Functions
static void	ccl_free_class_structs (ccl_cosmology *cosmo, struct background *ba, struct thermo *th, struct perturbs *pt, struct transfers *tr, struct primordial *pm, struct spectra *sp, struct nonlinear *nl, struct lensing *le, int *init_arr, int *status)
static void	ccl_class_preinit (struct background *ba, struct thermo *th, struct perturbs *pt, struct transfers *tr, struct primordial *pm, struct spectra *sp, struct nonlinear *nl, struct lensing *le)
static void	ccl_run_class (ccl_cosmology *cosmo, struct file_content *fc, struct precision *pr, struct background *ba, struct thermo *th, struct perturbs *pt, struct transfers *tr, struct primordial *pm, struct spectra *sp, struct nonlinear *nl, struct lensing *le, struct output *op, int *init_arr, int *status)
static double	ccl_get_class_As (ccl_cosmology *cosmo, struct file_content *fc, int position_As, double sigma8, int *status)
static void	ccl_fill_class_parameters (ccl_cosmology *cosmo, struct file_content *fc, int parser_length, int *status)
static void	ccl_cosmology_compute_power_class (ccl_cosmology *cosmo, int *status)
double	ccl_bcm_model_fka (ccl_cosmology *cosmo, double k, double a, int *status)
void	ccl_cosmology_write_power_class_z (char *filename, ccl_cosmology *cosmo, double z, int *status)
static eh_struct *	eh_struct_new (ccl_parameters *params)
static double	tkEH_0 (double keq, double k, double a, double b)
static double	tkEH_c (eh_struct *eh, double k)
static double	jbes0 (double x)
static double	tkEH_b (eh_struct *eh, double k)
static double	tsqr_EH (ccl_parameters *params, eh_struct *eh, double k, int wiggled)
static double	eh_power (ccl_parameters *params, eh_struct *eh, double k, int wiggled)
static void	ccl_cosmology_compute_power_eh (ccl_cosmology *cosmo, int *status)
static double	tsqr_BBKS (ccl_parameters *params, double k)
static double	bbks_power (ccl_parameters *params, double k)
static void	ccl_cosmology_compute_power_bbks (ccl_cosmology *cosmo, int *status)
static void	ccl_cosmology_compute_power_emu (ccl_cosmology *cosmo, int *status)
void	ccl_cosmology_compute_power (ccl_cosmology *cosmo, int *status)
static double	ccl_power_extrapol_highk (ccl_cosmology *cosmo, double k, double a, gsl_spline2d *powerspl, double kmax_spline, int *status)
static double	ccl_power_extrapol_lowk (ccl_cosmology *cosmo, double k, double a, gsl_spline2d *powerspl, double kmin_spline, int *status)
double	ccl_linear_matter_power (ccl_cosmology *cosmo, double k, double a, int *status)
double	ccl_nonlin_matter_power (ccl_cosmology *cosmo, double k, double a, int *status)
static double	w_tophat (double kR)
static double	sigmaR_integrand (double lk, void *params)
static double	sigmaV_integrand (double lk, void *params)
double	ccl_sigmaR (ccl_cosmology *cosmo, double R, double a, int *status)
double	ccl_sigmaV (ccl_cosmology *cosmo, double R, double a, int *status)
double	ccl_sigma8 (ccl_cosmology *cosmo, int *status)

Function Documentation

static double bbks_power ( ccl_parameters *  params, double  k  )

static

Definition at line 1007 of file ccl_power.c.

References ccl_parameters::n_s, pow(), and tsqr_BBKS().

Referenced by ccl_cosmology_compute_power_bbks().

{
  return pow(k,params->n_s)*tsqr_BBKS(params, k);
}

double ccl_bcm_model_fka	(	ccl_cosmology *	cosmo,
		double	k,
		double	a,
		int *	status
	)

Correction for the impact of baryonic physics on the matter power spectrum. Returns f(k,a) [dimensionless] for given cosmology, using the method specified for the baryonic transfer function. f(k,a) is the fractional change in the nonlinear matter power spectrum from the Baryon Correction Model (BCM) of Schenider & Teyssier (2015). The parameters of the model are passed as part of the cosmology class.

Parameters

cosmo	Cosmology parameters and configurations, including baryonic parameters.
k	Fourier mode, in [1/Mpc] units
a	scale factor, normalized to 1 for today
status	Status flag. 0 if there are no errors, nonzero otherwise. For specific cases see documentation for ccl_error.c

Returns

f(k,a).

Definition at line 574 of file ccl_power.c.

References ccl_parameters::bcm_etab, ccl_parameters::bcm_ks, ccl_parameters::bcm_log10Mc, ccl_parameters::h, ccl_cosmology::params, pow(), and z.

Referenced by ccl_nonlin_matter_power(), and compare_bcm().

                                                                                {

  double fka;
  double b0;
  double bfunc, bfunc4;
  double kg;
  double gf,scomp;
  double kh;
  double z;

  z=1./a-1.;
  kh = k/cosmo->params.h; //convert to h/Mpc
  b0 = 0.105*cosmo->params.bcm_log10Mc-1.27; //Eq. 4.4
  bfunc = b0/(1.+pow(z/2.3,2.5)); //Eq. 4.3
  bfunc4 = (1-bfunc)*(1-bfunc)*(1-bfunc)*(1-bfunc); //B^4(z)
  kg = 0.7*bfunc4*pow(cosmo->params.bcm_etab,-1.6); //Eq. 4.3
  gf = bfunc/(1+pow(kh/kg,3.))+1.-bfunc; //Eq. 4.2, k in h/Mpc
  scomp = 1+(kh/cosmo->params.bcm_ks)*(kh/cosmo->params.bcm_ks); //Eq 4.5, k in h/Mpc
  fka = gf*scomp;
  return fka;
}

static void ccl_class_preinit ( struct background *  ba, struct thermo *  th, struct perturbs *  pt, struct transfers *  tr, struct primordial *  pm, struct spectra *  sp, struct nonlinear *  nl, struct lensing *  le  )

static

Definition at line 93 of file ccl_power.c.

Referenced by ccl_run_class().

{
  //pre-initialize all fields that are freed by *_free() routine
  //prevents crashes if *_init()failed and did not initialize all tables freed by *_free()

  //init for background_free
  ba->tau_table = NULL;
  ba->z_table = NULL;
  ba->d2tau_dz2_table = NULL;
  ba->background_table = NULL;
  ba->d2background_dtau2_table = NULL;

  //init for thermodynamics_free
  th->z_table = NULL;
  th->thermodynamics_table = NULL;
  th->d2thermodynamics_dz2_table = NULL;

  //init for perturb_free
  pt->tau_sampling = NULL;
  pt->tp_size = NULL;
  pt->ic_size = NULL;
  pt->k = NULL;
  pt->k_size_cmb = NULL;
  pt->k_size_cl = NULL;
  pt->k_size = NULL;
  pt->sources = NULL;

  //init for primordial_free
  pm->amplitude = NULL;
  pm->tilt = NULL;
  pm->running = NULL;
  pm->lnpk = NULL;
  pm->ddlnpk = NULL;
  pm->is_non_zero = NULL;
  pm->ic_size = NULL;
  pm->ic_ic_size = NULL;
  pm->lnk = NULL;

  //init for nonlinear_free
  nl->k = NULL;
  nl->tau = NULL;
  nl->nl_corr_density = NULL;
  nl->k_nl = NULL;

  //init for transfer_free
  tr->tt_size = NULL;
  tr->l_size_tt = NULL;
  tr->l_size = NULL;
  tr->l = NULL;
  tr->q = NULL;
  tr->k = NULL;
  tr->transfer = NULL;

  //init for spectra_free
  //spectra_free checks all other data fields before freeing
  sp->is_non_zero = NULL;
  sp->ic_size = NULL;
  sp->ic_ic_size = NULL;
}

void ccl_cosmology_compute_power	(	ccl_cosmology *	cosmo,
		int *	status
	)

Compute the power spectrum and create a 2d spline P(k,z) to be stored in the cosmology structure.

Parameters

cosmo	Cosmological parameters
status	Status flag. 0 if there are no errors, nonzero otherwise. For specific cases see documentation for ccl_error.c

Returns

void

Definition at line 1403 of file ccl_power.c.

References ccl_bbks, ccl_boltzmann_class, ccl_check_status(), ccl_cosmology_compute_power_bbks(), ccl_cosmology_compute_power_class(), ccl_cosmology_compute_power_eh(), ccl_cosmology_compute_power_emu(), ccl_cosmology_set_status_message(), ccl_eisenstein_hu, ccl_emulator, CCL_ERROR_INCONSISTENT, ccl_cosmology::computed_power, ccl_cosmology::config, and ccl_configuration::transfer_function_method.

Referenced by ccl_linear_matter_power(), and ccl_nonlin_matter_power().

{

  if (cosmo->computed_power) return;
    switch(cosmo->config.transfer_function_method){
        case ccl_bbks:
      ccl_cosmology_compute_power_bbks(cosmo,status);
      break;
        case ccl_eisenstein_hu:
      ccl_cosmology_compute_power_eh(cosmo,status);
      break;
        case ccl_boltzmann_class:
      ccl_cosmology_compute_power_class(cosmo,status);
      break;
        case ccl_emulator:
      ccl_cosmology_compute_power_emu(cosmo,status);
      break;
        default:
      *status = CCL_ERROR_INCONSISTENT;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power(): Unknown or non-implemented transfer function method: %d \n", cosmo->config.transfer_function_method);
    }

    ccl_check_status(cosmo,status);
    if (*status==0){
      cosmo->computed_power = true;
    }
  return;
}

static void ccl_cosmology_compute_power_bbks ( ccl_cosmology *  cosmo, int *  status  )

static

Definition at line 1017 of file ccl_power.c.

References ccl_spline_params::A_SPLINE_MAX, ccl_spline_params::A_SPLINE_MIN_PK, ccl_spline_params::A_SPLINE_MINLOG_PK, ccl_spline_params::A_SPLINE_NA_PK, ccl_spline_params::A_SPLINE_NLOG_PK, bbks_power(), ccl_cosmology_set_status_message(), CCL_ERROR_INCONSISTENT, CCL_ERROR_MEMORY, CCL_ERROR_SPLINE, ccl_growth_factor(), ccl_linlog_spacing(), ccl_log_spacing(), ccl_sigma8(), ccl_splines, ccl_cosmology::computed_power, ccl_cosmology::data, ccl_spline_params::K_MAX, ccl_data::k_max_lin, ccl_data::k_max_nl, ccl_spline_params::K_MIN, ccl_data::k_min_lin, ccl_data::k_min_nl, ccl_spline_params::N_K, ccl_data::p_lin, ccl_data::p_nl, ccl_cosmology::params, PLIN_SPLINE_TYPE, PNL_SPLINE_TYPE, ccl_test_power::sigma8, ccl_parameters::sigma8, and x.

Referenced by ccl_cosmology_compute_power().

{
  //These are the limits of the splining range
  cosmo->data.k_min_lin=ccl_splines->K_MIN;
  cosmo->data.k_min_nl=ccl_splines->K_MIN;
  cosmo->data.k_max_lin=ccl_splines->K_MAX;
  cosmo->data.k_max_nl=ccl_splines->K_MAX;
  double kmin = cosmo->data.k_min_lin;
  double kmax = ccl_splines->K_MAX;
  //Compute nk from number of decades and N_K = # k per decade
  double ndecades = log10(kmax) - log10(kmin);
  int nk = (int)ceil(ndecades*ccl_splines->N_K);
  double amin = ccl_splines->A_SPLINE_MINLOG_PK;
  double amax = ccl_splines->A_SPLINE_MAX;
  int na = ccl_splines->A_SPLINE_NA_PK+ccl_splines->A_SPLINE_NLOG_PK-1;

  // Exit if sigma8 wasn't specified
  if (isnan(cosmo->params.sigma8)) {
    *status = CCL_ERROR_INCONSISTENT;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_bbks(): sigma8 not set, required for BBKS\n");
    return; //Return without anything to free
  }

  // The x array is initially k, but will later
  // be overwritten with log(k)
  double * x = ccl_log_spacing(kmin, kmax, nk);
  double * y = malloc(sizeof(double)*nk);
  double * a = ccl_linlog_spacing(amin, ccl_splines->A_SPLINE_MIN_PK, amax, ccl_splines->A_SPLINE_NLOG_PK, ccl_splines->A_SPLINE_NA_PK);
  double * y2d = malloc(nk * na * sizeof(double));

  //If error, store status, we will free later
  if (a==NULL||y==NULL|| x==NULL || y2d==0) {
    *status=CCL_ERROR_MEMORY;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_bbks(): memory allocation error\n");
  }

  //Status flags
  int splinstatus=0;

  if(!*status){

    // After this loop x will contain log(k)
    for (int i=0; i<nk; i++) {
      y[i] = log(bbks_power(&cosmo->params, x[i]));
      x[i] = log(x[i]);
    }

    for (int j = 0; j < na; j++) {
      double gfac = ccl_growth_factor(cosmo,a[j], status);
      double g2 = 2.*log(gfac);
      for (int i=0; i<nk; i++) {
    y2d[j*nk+i] = y[i]+g2;
      }
    }
  }

  if(!*status){

    // Initialize a 2D spline over P(k, a) [which is still unnormalized by sigma8]
    gsl_spline2d * log_power_lin_unnorm = gsl_spline2d_alloc(PLIN_SPLINE_TYPE, nk,na);
    splinstatus = gsl_spline2d_init(log_power_lin_unnorm, x, a, y2d,nk,na);

    //If not, proceed
    if (!splinstatus) {
      cosmo->data.p_lin=log_power_lin_unnorm;
      cosmo->computed_power=true;
    } else {
      gsl_spline2d_free(log_power_lin_unnorm);
      *status = CCL_ERROR_SPLINE;
      ccl_cosmology_set_status_message(cosmo,"ccl_power.c: ccl_cosmology_compute_power_bbks(): Error creating log_power_lin spline\n");
    }
  }

  if(*status){
    free(x); free(y); free(a); free(y2d);
    return;
  }

  // Calculate sigma8 for the unnormalized P(k), using the standard
  // ccl_sigma8() function
  double sigma8 = ccl_sigma8(cosmo,status);
  cosmo->computed_power=false;

  // Check that ccl_sigma8 didn't fail
  if (!*status) {

    // Calculate normalization factor using computed value of sigma8, then
    // recompute P(k, a) using this normalization
    double log_normalization_factor = 2*(log(cosmo->params.sigma8) - log(sigma8));
    for (int i=0; i<nk; i++) {
      y[i] += log_normalization_factor;
    }
    for (int j = 0; j < na; j++) {
      double gfac = ccl_growth_factor(cosmo,a[j], status);
      double g2 = 2.*log(gfac);
      for (int i=0; i<nk; i++) {
    y2d[j*nk+i] = y[i]+g2;
      }
    }
  }

  //Check growth didn't fail
  if (!*status) {

    gsl_spline2d * log_power_lin = gsl_spline2d_alloc(PLIN_SPLINE_TYPE, nk,na);
    splinstatus = gsl_spline2d_init(log_power_lin, x, a, y2d,nk,na);

    if (!splinstatus) {
      cosmo->data.p_lin=log_power_lin;
    } else {
      gsl_spline2d_free(log_power_lin);
      *status = CCL_ERROR_SPLINE;
      ccl_cosmology_set_status_message(cosmo,"ccl_power.c: ccl_cosmology_compute_power_bbks(): Error creating log_power_lin spline\n");
    }
  }

  if(!*status){
    // Allocate a 2D spline for the nonlinear P(k)
    //[which is just a copy of the linear one for BBKS]
    gsl_spline2d * log_power_nl = gsl_spline2d_alloc(PNL_SPLINE_TYPE, nk,na);
    splinstatus = gsl_spline2d_init(log_power_nl, x, a, y2d,nk,na);
    if (!splinstatus) {
      cosmo->data.p_nl = log_power_nl;
    } else {
      gsl_spline2d_free(log_power_nl);
      *status = CCL_ERROR_SPLINE;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_bbks(): Error creating log_power_nl spline\n");
    }
  }

  free(x); free(y); free(a); free(y2d);
  return;
}

static void ccl_cosmology_compute_power_class ( ccl_cosmology *  cosmo, int *  status  )

static

Definition at line 378 of file ccl_power.c.

References ccl_spline_params::A_SPLINE_MAX, ccl_spline_params::A_SPLINE_MIN_PK, ccl_spline_params::A_SPLINE_MINLOG_PK, ccl_spline_params::A_SPLINE_NA_PK, ccl_spline_params::A_SPLINE_NLOG_PK, ccl_cosmology_set_status_message(), CCL_ERROR_CLASS, CCL_ERROR_SPLINE, ccl_fill_class_parameters(), ccl_free_class_structs(), ccl_halofit, ccl_linlog_spacing(), ccl_log_spacing(), ccl_run_class(), ccl_splines, ccl_cosmology::config, ccl_cosmology::data, ccl_data::k_max_lin, ccl_data::k_max_nl, ccl_spline_params::K_MAX_SPLINE, ccl_data::k_min_lin, ccl_data::k_min_nl, ccl_configuration::matter_power_spectrum_method, ccl_spline_params::N_K, run_pk_param_space::nonlinear, ccl_data::p_lin, ccl_data::p_nl, PLIN_SPLINE_TYPE, PNL_SPLINE_TYPE, run_pk_param_space::precision, spectra(), and x.

Referenced by ccl_cosmology_compute_power().

{
  struct precision pr;        // for precision parameters
  struct background ba;       // for cosmological background
  struct thermo th;           // for thermodynamics
  struct perturbs pt;         // for source functions
  struct transfers tr;        // for transfer functions
  struct primordial pm;       // for primordial spectra
  struct spectra sp;          // for output spectra
  struct nonlinear nl;        // for non-linear spectra
  struct lensing le;
  struct output op;
  struct file_content fc;

  ErrorMsg errmsg; // for error messages
  // generate file_content structure
  // CLASS configuration parameters will be passed through this structure,
  // to avoid writing and reading .ini files for every call
  int parser_length = 20;
  int init_arr[7]={0,0,0,0,0,0,0};
  if (parser_init(&fc,parser_length,"none",errmsg) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): parser init error:%s\n", errmsg);
    return;
  }

  ccl_fill_class_parameters(cosmo,&fc,parser_length, status);

  if (*status != CCL_ERROR_CLASS)
    ccl_run_class(cosmo, &fc,&pr,&ba,&th,&pt,&tr,&pm,&sp,&nl,&le,&op,init_arr,status);

  if (*status == CCL_ERROR_CLASS) {
    //printed error message while running CLASS
    ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
    return;
  }

  if (parser_free(&fc)== _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error freeing CLASS parser\n");
    ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
    return;
  }

  //These are the limits of the splining range
  cosmo->data.k_min_lin=2*exp(sp.ln_k[0]);
  cosmo->data.k_max_lin=ccl_splines->K_MAX_SPLINE;

  //CLASS calculations done - now allocate CCL splines
  double kmin = cosmo->data.k_min_lin;
  double kmax = ccl_splines->K_MAX_SPLINE;
  //Compute nk from number of decades and N_K = # k per decade
  double ndecades = log10(kmax) - log10(kmin);
  int nk = (int)ceil(ndecades*ccl_splines->N_K);
  double amin = ccl_splines->A_SPLINE_MINLOG_PK;
  double amax = ccl_splines->A_SPLINE_MAX;
  int na = ccl_splines->A_SPLINE_NA_PK+ccl_splines->A_SPLINE_NLOG_PK-1;

  // The x array is initially k, but will later
  // be overwritten with log(k)
  double * x = ccl_log_spacing(kmin, kmax, nk);
  double * a = ccl_linlog_spacing(amin, ccl_splines->A_SPLINE_MIN_PK, amax, ccl_splines->A_SPLINE_NLOG_PK, ccl_splines->A_SPLINE_NA_PK);
  double * y2d_lin = malloc(nk * na * sizeof(double));
  double * y2d_nl = malloc(nk * na * sizeof(double));


  //If error, store status, we will free later
  if (a==NULL|| x==NULL || y2d_lin==NULL || y2d_nl==NULL) {
    *status = CCL_ERROR_SPLINE;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): memory allocation error\n");
  }

  //Status flags
  int newstatus=0;
  int pwstatus=0;

  //If not, proceed
  if(!*status){

    // After this loop x will contain log(k)
    // all in Mpc, not Mpc/h units!
    double psout_l,ic;
    for (int i=0; i<nk; i++) {
      for (int j = 0; j < na; j++) {
    //The 2D interpolation routines access the function values y_{k_ia_j} with the following ordering:
    //y_ij = y2d[j*N_k + i]
    //with i = 0,...,N_k-1 and j = 0,...,N_a-1.
    newstatus |= spectra_pk_at_k_and_z(&ba, &pm, &sp,x[i],1./a[j]-1., &psout_l,&ic);
    y2d_lin[j*nk+i] = log(psout_l);
      }
      x[i] = log(x[i]);
    }


    //If error, store status, we will free later
    if(newstatus) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error computing CLASS power spectrum\n");
    }


  }


  //If no error, proceed
  if(!*status) {

    gsl_spline2d * log_power = gsl_spline2d_alloc(PLIN_SPLINE_TYPE, nk,na);
    pwstatus = gsl_spline2d_init(log_power, x, a, y2d_lin,nk,na);

    //If not, proceed
    if(!pwstatus){
      cosmo->data.p_lin = log_power;
    } else {
      gsl_spline2d_free(log_power);
      *status = CCL_ERROR_SPLINE;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error creating log_power spline\n");
    }

  }

  if(*status){ //Linear power spec failed, so we return without proceeding to nonlinear.
    free(x);
    free(a);
    free(y2d_nl);
    free(y2d_lin);
    ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
    return;
  }

  //Non-linear power
  //At the moment KMIN can't be less than CLASS's kmin in the nonlinear case.

  //If error, store status, we will free later
  if (kmin<(exp(sp.ln_k[0]))) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): K_MIN is less than CLASS's kmin. Not yet supported for nonlinear P(k).\n");
  }

  //If not, proceed
  if(!*status){

    //These are the limits of the splining range
    cosmo->data.k_min_nl=2*exp(sp.ln_k[0]);
    cosmo->data.k_max_nl=ccl_splines->K_MAX_SPLINE;

    if(cosmo->config.matter_power_spectrum_method==ccl_halofit) {

      double psout_nl;
      for (int i=0; i<nk; i++) {
    for (int j = 0; j < na; j++) {
      newstatus |= spectra_pk_nl_at_k_and_z(&ba, &pm, &sp,exp(x[i]),1./a[j]-1.,&psout_nl);
      y2d_nl[j*nk+i] = log(psout_nl);
    }
      }
    }

    if(newstatus){
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error computing CLASS power spectrum\n");
    }

  }

  if(!*status){

    gsl_spline2d * log_power_nl = gsl_spline2d_alloc(PNL_SPLINE_TYPE, nk,na);
    pwstatus = gsl_spline2d_init(log_power_nl, x, a, y2d_nl,nk,na);

    if(!pwstatus){
      cosmo->data.p_nl = log_power_nl;
    } else {
      gsl_spline2d_free(log_power_nl);
      *status = CCL_ERROR_SPLINE;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error creating log_power_nl spline\n");
    }

  }

  ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
  free(x);
  free(a);
  free(y2d_nl);
  free(y2d_lin);

  return;

}

static void ccl_cosmology_compute_power_eh ( ccl_cosmology *  cosmo, int *  status  )

static

Definition at line 842 of file ccl_power.c.

References ccl_spline_params::A_SPLINE_MAX, ccl_spline_params::A_SPLINE_MIN_PK, ccl_spline_params::A_SPLINE_MINLOG_PK, ccl_spline_params::A_SPLINE_NA_PK, ccl_spline_params::A_SPLINE_NLOG_PK, ccl_cosmology_set_status_message(), CCL_ERROR_INCONSISTENT, CCL_ERROR_MEMORY, CCL_ERROR_SPLINE, ccl_growth_factor(), ccl_linlog_spacing(), ccl_log_spacing(), ccl_sigma8(), ccl_splines, ccl_cosmology::computed_power, ccl_cosmology::data, eh_power(), eh_struct_new(), ccl_spline_params::K_MAX, ccl_data::k_max_lin, ccl_data::k_max_nl, ccl_spline_params::K_MIN, ccl_data::k_min_lin, ccl_data::k_min_nl, ccl_spline_params::N_K, ccl_data::p_lin, ccl_data::p_nl, ccl_cosmology::params, PLIN_SPLINE_TYPE, PNL_SPLINE_TYPE, ccl_test_power::sigma8, ccl_parameters::sigma8, and x.

Referenced by ccl_cosmology_compute_power().

{
  //These are the limits of the splining range
  cosmo->data.k_min_lin = ccl_splines->K_MIN;
  cosmo->data.k_min_nl = ccl_splines->K_MIN;
  cosmo->data.k_max_lin = ccl_splines->K_MAX;
  cosmo->data.k_max_nl = ccl_splines->K_MAX;
  double kmin = cosmo->data.k_min_lin;
  double kmax = ccl_splines->K_MAX;

  // Compute nk from number of decades and N_K = # k per decade
  double ndecades = log10(kmax) - log10(kmin);
  int nk = (int)ceil(ndecades*ccl_splines->N_K);

  // Compute na using predefined spline spacing
  double amin = ccl_splines->A_SPLINE_MINLOG_PK;
  double amax = ccl_splines->A_SPLINE_MAX;
  int na = ccl_splines->A_SPLINE_NA_PK + ccl_splines->A_SPLINE_NLOG_PK - 1;

  // Exit if sigma8 wasn't specified
  if (isnan(cosmo->params.sigma8)) {
    *status = CCL_ERROR_INCONSISTENT;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_eh(): sigma8 was not set, but is required for E&H method\n");
    return;
  }

  // New struct for EH parameters
  eh_struct *eh = eh_struct_new(&(cosmo->params));
  if (eh == NULL) {
    *status = CCL_ERROR_MEMORY;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_eh(): memory allocation error\n");
    return;
  }

  // Build grids in k and a that P(k, a) will be evaluated on
  // NB: The x array is initially k, but will later be overwritten with log(k)
  double * x = ccl_log_spacing(kmin, kmax, nk);
  double * y = malloc(sizeof(double)*nk);
  double * a = ccl_linlog_spacing(amin, ccl_splines->A_SPLINE_MIN_PK,
                                  amax, ccl_splines->A_SPLINE_NLOG_PK,
                                  ccl_splines->A_SPLINE_NA_PK);
  double * y2d = malloc(nk * na * sizeof(double));
  if (a==NULL || y==NULL || x==NULL || y2d==NULL) {
    free(eh);free(x);free(y);
    free(a);free(y2d);
    *status = CCL_ERROR_MEMORY;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_eh(): memory allocation error\n");
    return;
  }

  // Calculate P(k) on k grid. After this loop, x will contain log(k) and y
  // will contain log(pk) [which has not yet been normalized]
  // Notice the last parameter in eh_power controls
  // whether to introduce wiggles (BAO) in the power spectrum.
  // We do this by default.
  for (int i=0; i<nk; i++) {
    y[i] = log(eh_power(&cosmo->params, eh, x[i], 1));
    x[i] = log(x[i]);
  }

  // Apply growth factor, D(a), to P(k) and store in 2D (k, a) array
  double gfac, g2;
  gsl_spline2d *log_power_lin = gsl_spline2d_alloc(PLIN_SPLINE_TYPE, nk,na);
  for (int j = 0; j < na; j++) {
    gfac = ccl_growth_factor(cosmo, a[j], status);
    g2 = 2.*log(gfac);
    for (int i=0; i<nk; i++) {
      y2d[j*nk+i] = y[i]+g2;
    } // end loop over k
  } // end loop over a

  // Check that ccl_growth_factor didn't fail
  if (*status) {
    free(eh); free(x); free(y); free(a); free(y2d);
    gsl_spline2d_free(log_power_lin);
    return;
  }

  // Initialize a 2D spline over P(k, a) [which is still unnormalized by sigma8]
  int splinstatus = gsl_spline2d_init(log_power_lin, x, a, y2d,nk,na);
  if (splinstatus) {
    free(eh); free(x); free(y); free(a); free(y2d);
    gsl_spline2d_free(log_power_lin);
    *status = CCL_ERROR_SPLINE;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_eh(): Error creating log_power_lin spline\n");
    return;
  }

  // Calculate sigma8 for the unnormalized P(k), using the standard
  // ccl_sigma8() function
  cosmo->data.p_lin = log_power_lin;
  cosmo->computed_power = true; // Temporarily set this to true
  double sigma8 = ccl_sigma8(cosmo, status);
  cosmo->computed_power = false;

  // Check that ccl_sigma8 didn't fail
  if (*status) {
    free(eh); free(x); free(y); free(a); free(y2d);
    gsl_spline2d_free(log_power_lin);
    return;
  }

  // Calculate normalization factor using computed value of sigma8, then
  // recompute P(k, a) using this normalization
  double log_normalization_factor = 2*(log(cosmo->params.sigma8) - log(sigma8));
  for (int i=0; i < nk; i++) {
    y[i] += log_normalization_factor;
  }
  for (int j = 0; j < na; j++) {
    gfac = ccl_growth_factor(cosmo, a[j], status);
    g2 = 2.*log(gfac);
    for (int i=0; i<nk; i++) {
      y2d[j*nk+i] = y[i]+g2; // Replace previous values
    } // end k loop
  } // end a loop

  splinstatus = gsl_spline2d_init(log_power_lin, x, a, y2d, nk, na);
  if (splinstatus) {
    free(eh); free(x); free(y); free(a); free(y2d);
    gsl_spline2d_free(log_power_lin);
    *status = CCL_ERROR_SPLINE;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_eh(): Error creating log_power_lin spline\n");
    return;
  }
  else
    cosmo->data.p_lin = log_power_lin;

  // Allocate a 2D spline for the nonlinear P(k) [which is just a copy of the
  // linear one for E&H]
  gsl_spline2d * log_power_nl = gsl_spline2d_alloc(PNL_SPLINE_TYPE, nk, na);
  splinstatus = gsl_spline2d_init(log_power_nl, x, a, y2d, nk, na);

  if (splinstatus) {
    free(eh); free(x); free(y); free(a); free(y2d);
    gsl_spline2d_free(log_power_lin);
    gsl_spline2d_free(log_power_nl);
    *status = CCL_ERROR_SPLINE;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_eh(): Error creating log_power_nl spline\n");
    return;
  }
  else
    cosmo->data.p_nl = log_power_nl;

  // Free temporary arrays
  free(eh); free(x); free(y); free(a); free(y2d);
}

static void ccl_cosmology_compute_power_emu ( ccl_cosmology *  cosmo, int *  status  )

static

Definition at line 1158 of file ccl_power.c.

References A_MIN_EMU, ccl_spline_params::A_SPLINE_MAX, ccl_spline_params::A_SPLINE_MIN_PK, ccl_spline_params::A_SPLINE_MINLOG_PK, ccl_spline_params::A_SPLINE_NA_PK, ccl_spline_params::A_SPLINE_NLOG_PK, ccl_data::accelerator, ccl_cosmology_set_status_message(), ccl_emu_equalize, ccl_emu_strict, CCL_ERROR_CLASS, CCL_ERROR_INCONSISTENT, CCL_ERROR_MEMORY, CCL_ERROR_SPLINE, ccl_fill_class_parameters(), ccl_free_class_structs(), ccl_linear_spacing(), ccl_linlog_spacing(), ccl_log_spacing(), ccl_Omeganuh2(), ccl_pkemu(), ccl_run_class(), ccl_splines, ccl_cosmology::config, ccl_cosmology::data, ccl_configuration::emulator_neutrinos_method, ccl_parameters::h, if(), K_MAX_EMU, ccl_data::k_max_lin, ccl_data::k_max_nl, ccl_spline_params::K_MAX_SPLINE, K_MIN_EMU, ccl_data::k_min_lin, ccl_data::k_min_nl, ccl_parameters::mnu, mode, ccl_spline_params::N_K, ccl_parameters::N_nu_mass, ccl_parameters::N_nu_rel, ccl_parameters::n_s, NK_EMU, run_pk_param_space::nonlinear, ccl_parameters::Omega_b, ccl_parameters::Omega_c, ccl_parameters::Omega_n_mass, ccl_data::p_lin, ccl_data::p_nl, ccl_cosmology::params, PLIN_SPLINE_TYPE, run_pk_param_space::precision, ccl_parameters::sigma8, spectra(), ccl_parameters::sum_nu_masses, ccl_parameters::T_CMB, ccl_parameters::w0, ccl_parameters::wa, and x.

Referenced by ccl_cosmology_compute_power().

{

  struct precision pr;        // for precision parameters
  struct background ba;       // for cosmological background
  struct thermo th;           // for thermodynamics
  struct perturbs pt;         // for source functions
  struct transfers tr;        // for transfer functions
  struct primordial pm;       // for primordial spectra
  struct spectra sp;          // for output spectra
  struct nonlinear nl;        // for non-linear spectra
  struct lensing le;
  struct output op;
  struct file_content fc;

  double Omeganuh2_eq;
  double w0wacomb = -cosmo->params.w0 - cosmo->params.wa;

  ErrorMsg errmsg; // for error messages
  // generate file_content structure
  // Configuration parameters will be passed through this structure,
  // to avoid writing and reading .ini files for every call
  int parser_length = 20;
  int init_arr[7]={0,0,0,0,0,0,0};

  //Check initialization
  if (parser_init(&fc,parser_length,"none",errmsg) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): parser init error:%s\n", errmsg);
  }

  // Check ranges to see if the cosmology is valid
  if((cosmo->params.h<0.55) || (cosmo->params.h>0.85)){
    *status=CCL_ERROR_INCONSISTENT;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): h is outside allowed range\n");
  }
  if(w0wacomb<8.1e-3){ //0.3^4
    *status=CCL_ERROR_INCONSISTENT;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): w0 and wa do not satisfy the emulator bound\n");
  }
  if(cosmo->params.Omega_n_mass*cosmo->params.h*cosmo->params.h>0.01){
    *status=CCL_ERROR_INCONSISTENT;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): Omega_nu does not satisfy the emulator bound\n");
  }

  // Check to see if sigma8 was defined
  if(isnan(cosmo->params.sigma8)){
    *status=CCL_ERROR_INCONSISTENT;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): sigma8 is not defined; specify sigma8 instead of A_s\n");
  }

  //If one of the previous test was unsuccessful, quit:
  if(*status) return;

  // Check if the cosmology has been set up with equal neutrino masses for the emulator
  // If not, check if the user has forced redistribution of masses and if so do this.
  if(cosmo->params.N_nu_mass>0) {
    if (cosmo->config.emulator_neutrinos_method == ccl_emu_strict){
      if (cosmo->params.N_nu_mass==3){
    //double diff1 = pow((cosmo->params.mnu[0] - cosmo->params.mnu[1]) * (cosmo->params.mnu[0] - cosmo->params.mnu[1]), 0.5);
    //double diff2 = pow((cosmo->params.mnu[1] - cosmo->params.mnu[2]) * (cosmo->params.mnu[1] - cosmo->params.mnu[2]), 0.5);
    //double diff3 = pow((cosmo->params.mnu[2] - cosmo->params.mnu[0]) * (cosmo->params.mnu[2] - cosmo->params.mnu[0]), 0.5);
    //if (diff1>1e-12 || diff2>1e-12 || diff3>1e-12){
    if (cosmo->params.mnu[0] != cosmo->params.mnu[1] || cosmo->params.mnu[0] != cosmo->params.mnu[2] || cosmo->params.mnu[1] != cosmo->params.mnu[2]){
      *status = CCL_ERROR_INCONSISTENT;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): In the default configuration, you must pass a list of 3 equal neutrino masses or pass a sum and set mnu_type = ccl_mnu_sum_equal. If you wish to over-ride this, set config->emulator_neutrinos_method = 'ccl_emu_equalize'. This will force the neutrinos to be of equal mass but will result in internal inconsistencies.\n");
    }
      } else if (cosmo->params.N_nu_mass!=3){
    *status = CCL_ERROR_INCONSISTENT;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): In the default configuration, you must pass a list of 3 equal neutrino masses or pass a sum and set mnu_type = ccl_mnu_sum_equal. If you wish to over-ride this, set config->emulator_neutrinos_method = 'ccl_emu_equalize'. This will force the neutrinos to be of equal mass but will result in internal inconsistencies.\n");
      }
    } else if (cosmo->config.emulator_neutrinos_method == ccl_emu_equalize){
      // Reset the masses to equal
      double mnu_eq[3] = {cosmo->params.sum_nu_masses / 3., cosmo->params.sum_nu_masses / 3., cosmo->params.sum_nu_masses / 3.};
      Omeganuh2_eq = ccl_Omeganuh2(1.0, 3, mnu_eq, cosmo->params.T_CMB, cosmo->data.accelerator, status);
    }
  } else {
    if(fabs(cosmo->params.N_nu_rel - 3.04)>1.e-6){
      *status=CCL_ERROR_INCONSISTENT;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): Set Neff = 3.04 for cosmic emulator predictions in absence of massive neutrinos.\n");
    }
  }

  if(!*status){
    // Prepare to run CLASS for linear scales
    ccl_fill_class_parameters(cosmo,&fc,parser_length, status);
  }

  if (!*status){
    ccl_run_class(cosmo, &fc,&pr,&ba,&th,&pt,&tr,&pm,&sp,&nl,&le,&op,init_arr,status);
  }

  if (*status){
    ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
    if (parser_free(&fc)== _FAILURE_) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error freeing CLASS parser\n");
    }
    return;
  }

  //These are the limits of the splining range
  cosmo->data.k_min_lin=2*exp(sp.ln_k[0]);
  cosmo->data.k_max_lin=ccl_splines->K_MAX_SPLINE;
  //CLASS calculations done - now allocate CCL splines
  double kmin = cosmo->data.k_min_lin;
  double kmax = ccl_splines->K_MAX_SPLINE;
  //Compute nk from number of decades and N_K = # k per decade
  double ndecades = log10(kmax) - log10(kmin);
  int nk = (int)ceil(ndecades*ccl_splines->N_K);
  double amin = ccl_splines->A_SPLINE_MINLOG_PK;
  double amax = ccl_splines->A_SPLINE_MAX;
  int na = ccl_splines->A_SPLINE_NA_PK+ccl_splines->A_SPLINE_NLOG_PK-1;

  // The x array is initially k, but will later
  // be overwritten with log(k)
  double * x = ccl_log_spacing(kmin, kmax, nk);
  double * a = ccl_linlog_spacing(amin, ccl_splines->A_SPLINE_MIN_PK, amax, ccl_splines->A_SPLINE_NLOG_PK, ccl_splines->A_SPLINE_NA_PK);
  double * y2d_lin = malloc(nk * na * sizeof(double));
  if (a==NULL|| x==NULL || y2d_lin==NULL) {
    *status = CCL_ERROR_SPLINE;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): memory allocation error\n");
  }

  if(!*status){
    // After this loop x will contain log(k), y will contain log(P_nl), z will contain log(P_lin)
    // all in Mpc, not Mpc/h units!
    double psout_l,ic;
    int s=0;
    for (int i=0; i<nk; i++) {
      for (int j = 0; j < na; j++) {
    //The 2D interpolation routines access the function values y_{k_ia_j} with the following ordering:
    //y_ij = y2d[j*N_k + i]
    //with i = 0,...,N_k-1 and j = 0,...,N_a-1.
    s |= spectra_pk_at_k_and_z(&ba, &pm, &sp,x[i],1./a[j]-1., &psout_l,&ic);
    y2d_lin[j*nk+i] = log(psout_l);
      }
      x[i] = log(x[i]);
    }
    if(s) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): Error computing CLASS power spectrum\n");
    }
  }

  if(!*status){

    gsl_spline2d * log_power = gsl_spline2d_alloc(PLIN_SPLINE_TYPE, nk,na);
    int pwstatus = gsl_spline2d_init(log_power, x, a, y2d_lin,nk,na);
    if (!pwstatus) {
      cosmo->data.p_lin = log_power;
    } else {
      gsl_spline2d_free(log_power);
      *status = CCL_ERROR_SPLINE;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): Error creating log_power spline\n");
    }
  }

  if(*status){ //Linear power spectrum failed, so quit.
      free(x);
      free(a);
      free(y2d_lin);
      ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
      return;
  }

  //Now start the NL computation with the emulator
  //These are the limits of the splining range
  cosmo->data.k_min_nl=K_MIN_EMU;
  cosmo->data.k_max_nl=K_MAX_EMU;
  amin = A_MIN_EMU; //limit of the emulator
  amax = ccl_splines->A_SPLINE_MAX;
  na = ccl_splines->A_SPLINE_NA_PK;
  // The x array is initially k, but will later
  // be overwritten with log(k)
  double * logx= malloc(NK_EMU*sizeof(double));
  double * y;
  double * xstar = malloc(9 * sizeof(double));
  double * aemu = ccl_linear_spacing(amin,amax, na);
  double * y2d = malloc(NK_EMU * na * sizeof(double));
  if (aemu==NULL || y2d==NULL || logx==NULL || xstar==NULL){
    *status=CCL_ERROR_MEMORY;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): memory allocation error\n");
  }

  if(!*status){

    //For each redshift:
    for (int j = 0; j < na; j++){

      //Turn cosmology into xstar:
      xstar[0] = (cosmo->params.Omega_c+cosmo->params.Omega_b)*cosmo->params.h*cosmo->params.h;
      xstar[1] = cosmo->params.Omega_b*cosmo->params.h*cosmo->params.h;
      xstar[2] = cosmo->params.sigma8;
      xstar[3] = cosmo->params.h;
      xstar[4] = cosmo->params.n_s;
      xstar[5] = cosmo->params.w0;
      xstar[6] = cosmo->params.wa;
      if ((cosmo->params.N_nu_mass>0) && (cosmo->config.emulator_neutrinos_method == ccl_emu_equalize)){
    xstar[7] = Omeganuh2_eq;
      } else {
        xstar[7] = cosmo->params.Omega_n_mass*cosmo->params.h*cosmo->params.h;
      }
      xstar[8] = 1./aemu[j]-1;
      //Need to have this here because otherwise overwritten by emu in each loop

      //Call emulator at this redshift
      ccl_pkemu(xstar,&y, status, cosmo);
      if (y == NULL){
    *status = CCL_ERROR_MEMORY;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): Error obtaining emulator predictions\n");
      }
      for (int i=0; i<NK_EMU; i++){
    logx[i] = log(mode[i]);
    y2d[j*NK_EMU+i] = log(y[i]);
      }
    }
  }

  if(!*status){

    gsl_spline2d * log_power_nl = gsl_spline2d_alloc(PLIN_SPLINE_TYPE, NK_EMU,na);
    int splinstatus = gsl_spline2d_init(log_power_nl, logx, aemu, y2d,NK_EMU,na);
    //Note the minimum k of the spline is different from the linear one.

    if (!splinstatus){
      cosmo->data.p_nl = log_power_nl;
    } else {
      gsl_spline2d_free(log_power_nl);
      *status = CCL_ERROR_SPLINE;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_emu(): Error creating log_power spline\n");
    }
  }

  free(x); free(a); free(y);
  free(xstar); free(logx); free(aemu);
  free(y2d_lin); free(y2d);
}

void ccl_cosmology_write_power_class_z	(	char *	filename,
		ccl_cosmology *	cosmo,
		double	z,
		int *	status
	)

CLASS power spectrum without splines. Write k, P(k,z) [1/Mpc, Mpc^3] for given cosmology at the k values used within CLASS (spectra.ln_k[]), using the method specified in config.matter_power_spectrum_method.

Parameters

filename	File into which k, P(k,a) will be written
cosmo	Cosmology parameters and configurations
z	Redshift at which the power spectrum is evaluated
status	Status flag. 0 if there are no errors, nonzero otherwise.

Definition at line 596 of file ccl_power.c.

References ccl_cosmology_set_status_message(), CCL_ERROR_CLASS, ccl_fill_class_parameters(), ccl_free_class_structs(), ccl_run_class(), run_pk_param_space::nonlinear, run_pk_param_space::precision, and spectra().

Referenced by write_Pk_CLASS().

{
  struct precision pr;        // for precision parameters
  struct background ba;       // for cosmological background
  struct thermo th;           // for thermodynamics
  struct perturbs pt;         // for source functions
  struct transfers tr;        // for transfer functions
  struct primordial pm;       // for primordial spectra
  struct spectra sp;          // for output spectra
  struct nonlinear nl;        // for non-linear spectra
  struct lensing le;
  struct output op;
  struct file_content fc;

  ErrorMsg errmsg; // for error messages
  // generate file_content structure
  // CLASS configuration parameters will be passed through this structure,
  // to avoid writing and reading .ini files for every call
  int parser_length = 20;
  int init_arr[7]={0,0,0,0,0,0,0};
  if (parser_init(&fc,parser_length,"none",errmsg) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: write_power_class_z(): parser init error:%s\n", errmsg);
    return;
  }

  ccl_fill_class_parameters(cosmo,&fc,parser_length, status);

  if (*status != CCL_ERROR_CLASS)
    ccl_run_class(cosmo, &fc,&pr,&ba,&th,&pt,&tr,&pm,&sp,&nl,&le,&op,init_arr,status);

  if (*status == CCL_ERROR_CLASS) {
    //printed error message while running CLASS
    ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
    return;
  }
  if (parser_free(&fc)== _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: write_power_class_z(): Error freeing CLASS parser\n");
    ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
    return;
  }
  FILE *f;
  f = fopen(filename,"w");
  if (!f){
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: write_power_class_z(): Error opening output file\n");
    ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
    fclose(f);
    return;
  }
  double psout_l,ic;
  int s=0;
  for (int i=0; i<sp.ln_k_size; i++) {
    s |= spectra_pk_at_k_and_z(&ba, &pm, &sp,exp(sp.ln_k[i]),z, &psout_l,&ic);
    fprintf(f,"%e %e\n",exp(sp.ln_k[i]),psout_l);
  }
  fclose(f);
  if(s) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: write_power_class_z(): Error writing CLASS power spectrum\n");
  }

  ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);
}

static void ccl_fill_class_parameters ( ccl_cosmology *  cosmo, struct file_content *  fc, int  parser_length, int *  status  )

static

Definition at line 266 of file ccl_power.c.

References ccl_parameters::A_s, ccl_spline_params::A_SPLINE_MINLOG_PK, ccl_cosmology_set_status_message(), CCL_ERROR_INCONSISTENT, ccl_get_class_As(), ccl_halofit, ccl_splines, ccl_cosmology::config, ccl_parameters::h, ccl_spline_params::K_MAX_SPLINE, ccl_configuration::matter_power_spectrum_method, ccl_parameters::mnu, ccl_parameters::N_nu_mass, ccl_parameters::N_nu_rel, ccl_parameters::n_s, ccl_parameters::Omega_b, ccl_parameters::Omega_c, ccl_parameters::Omega_k, ccl_cosmology::params, ccl_parameters::sigma8, ccl_parameters::T_CMB, ccl_parameters::w0, and ccl_parameters::wa.

Referenced by ccl_cosmology_compute_power_class(), ccl_cosmology_compute_power_emu(), and ccl_cosmology_write_power_class_z().

{

  // initialize fc fields
  //silences Valgrind's "Conditional jump or move depends on uninitialised value" warning
  for (int i = 0; i< parser_length; i++){
    strcpy(fc->name[i]," ");
    strcpy(fc->value[i]," ");
  }

  strcpy(fc->name[0],"output");
  strcpy(fc->value[0],"mPk");

  strcpy(fc->name[1],"non linear");
  if (cosmo->config.matter_power_spectrum_method == ccl_halofit)
    strcpy(fc->value[1],"Halofit");
  else
    strcpy(fc->value[1],"none");

  strcpy(fc->name[2],"P_k_max_1/Mpc");
  sprintf(fc->value[2],"%.15e",ccl_splines->K_MAX_SPLINE); //in units of 1/Mpc, corroborated with ccl_constants.h

  strcpy(fc->name[3],"z_max_pk");
  sprintf(fc->value[3],"%.15e",1./ccl_splines->A_SPLINE_MINLOG_PK-1.);

  strcpy(fc->name[4],"modes");
  strcpy(fc->value[4],"s");

  strcpy(fc->name[5],"lensing");
  strcpy(fc->value[5],"no");

  // now, copy over cosmology parameters
  strcpy(fc->name[6],"h");
  sprintf(fc->value[6],"%.15e",cosmo->params.h);

  strcpy(fc->name[7],"Omega_cdm");
  sprintf(fc->value[7],"%.15e",cosmo->params.Omega_c);

  strcpy(fc->name[8],"Omega_b");
  sprintf(fc->value[8],"%.15e",cosmo->params.Omega_b);

  strcpy(fc->name[9],"Omega_k");
  sprintf(fc->value[9],"%.15e",cosmo->params.Omega_k);

  strcpy(fc->name[10],"n_s");
  sprintf(fc->value[10],"%.15e",cosmo->params.n_s);


  //cosmological constant?
  // set Omega_Lambda = 0.0 if w !=-1
  if ((cosmo->params.w0 !=-1.0) || (cosmo->params.wa !=0)) {
    strcpy(fc->name[11],"Omega_Lambda");
    sprintf(fc->value[11],"%.15e",0.0);

    strcpy(fc->name[12],"w0_fld");
    sprintf(fc->value[12],"%.15e",cosmo->params.w0);

    strcpy(fc->name[13],"wa_fld");
    sprintf(fc->value[13],"%.15e",cosmo->params.wa);
  }
  //neutrino parameters
  //massless neutrinos
  if (cosmo->params.N_nu_rel > 1.e-4) {
    strcpy(fc->name[14],"N_ur");
    sprintf(fc->value[14],"%.15e",cosmo->params.N_nu_rel);
  }
  else {
    strcpy(fc->name[14],"N_ur");
    sprintf(fc->value[14],"%.15e", 0.);
  }
  if (cosmo->params.N_nu_mass > 0) {
    strcpy(fc->name[15],"N_ncdm");
    sprintf(fc->value[15],"%d",cosmo->params.N_nu_mass);
    strcpy(fc->name[16],"m_ncdm");
    sprintf(fc->value[16],"%f", (cosmo->params.mnu)[0]);
    if (cosmo->params.N_nu_mass >=1){
        for (int i = 1; i < cosmo->params.N_nu_mass; i++) {
            char tmp[20];
            sprintf(tmp,", %f",(cosmo->params.mnu)[i]);
            strcat(fc->value[16],tmp);
        }
    }

  }

  strcpy(fc->name[17],"T_cmb");
  sprintf(fc->value[17],"%.15e",cosmo->params.T_CMB);

  //normalization comes last, so that all other parameters are filled in for determining A_s if sigma8 is specified
  if (isfinite(cosmo->params.sigma8) && isfinite(cosmo->params.A_s)){
      *status = CCL_ERROR_INCONSISTENT;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: class_parameters(): Error initializing CLASS parameters: both sigma8 and A_s defined\n");
    return;
  }
  if (isfinite(cosmo->params.sigma8)) {
    strcpy(fc->name[parser_length-1],"A_s");
    sprintf(fc->value[parser_length-1],"%.15e",ccl_get_class_As(cosmo,fc,parser_length-1,cosmo->params.sigma8, status));
  }
  else if (isfinite(cosmo->params.A_s)) {
    strcpy(fc->name[parser_length-1],"A_s");
    sprintf(fc->value[parser_length-1],"%.15e",cosmo->params.A_s);
  }
  else {
    *status = CCL_ERROR_INCONSISTENT;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: class_parameters(): Error initializing CLASS pararmeters: neither sigma8 nor A_s defined\n");
    return;
  }

}

static void ccl_free_class_structs ( ccl_cosmology *  cosmo, struct background *  ba, struct thermo *  th, struct perturbs *  pt, struct transfers *  tr, struct primordial *  pm, struct spectra *  sp, struct nonlinear *  nl, struct lensing *  le, int *  init_arr, int *  status  )

static

Definition at line 21 of file ccl_power.c.

References ccl_cosmology_set_status_message(), and CCL_ERROR_CLASS.

Referenced by ccl_cosmology_compute_power_class(), ccl_cosmology_compute_power_emu(), ccl_cosmology_write_power_class_z(), and ccl_get_class_As().

{
  int i_init=6;
  if(init_arr[i_init--]) {
    if (spectra_free(sp) == _FAILURE_) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_free_class_structs(): Error freeing CLASS spectra:%s\n", sp->error_message);
      return;
    }
  }

  if(init_arr[i_init--]) {
    if (transfer_free(tr) == _FAILURE_) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_free_class_structs(): Error freeing CLASS transfer:%s\n", tr->error_message);
      return;
    }
  }

  if(init_arr[i_init--]) {
    if (nonlinear_free(nl) == _FAILURE_) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_free_class_structs(): Error freeing CLASS nonlinear:%s\n", nl->error_message);
      return;
    }
  }

  if(init_arr[i_init--]) {
    if (primordial_free(pm) == _FAILURE_) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_free_class_structs(): Error freeing CLASS pm:%s\n", pm->error_message);
      return;
    }
  }

  if(init_arr[i_init--]) {
    if (perturb_free(pt) == _FAILURE_) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_free_class_structs(): Error freeing CLASS pt:%s\n", pt->error_message);
      return;
    }
  }

  if(init_arr[i_init--]) {
    if (thermodynamics_free(th) == _FAILURE_) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_free_class_structs(): Error freeing CLASS thermo:%s\n", th->error_message);
      return;
    }
  }

  if(init_arr[i_init--]) {
    if (background_free(ba) == _FAILURE_) {
      *status = CCL_ERROR_CLASS;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_free_class_structs(): Error freeing CLASS bg:%s\n", ba->error_message);
      return;
    }
  }

  return;
}

static double ccl_get_class_As ( ccl_cosmology *  cosmo, struct file_content *  fc, int  position_As, double  sigma8, int *  status  )

static

Definition at line 228 of file ccl_power.c.

References CCL_ERROR_CLASS, ccl_free_class_structs(), ccl_run_class(), run_pk_param_space::nonlinear, pow(), run_pk_param_space::precision, ccl_test_power::sigma8, spectra(), and ccl_cosmology::status.

Referenced by ccl_fill_class_parameters().

{
  //structures for class test run
  struct precision pr;        // for precision parameters
  struct background ba;       // for cosmological background
  struct thermo th;           // for thermodynamics
  struct perturbs pt;         // for source functions
  struct transfers tr;        // for transfer functions
  struct primordial pm;       // for primordial spectra
  struct spectra sp;          // for output spectra
  struct nonlinear nl;        // for non-linear spectra
  struct lensing le;
  struct output op;

  //temporarily overwrite P_k_max_1/Mpc to speed up sigma8 calculation
  double k_max_old = 0.;
  int position_kmax =2;
  double A_s_guess;
  int init_arr[7]={0,0,0,0,0,0,0};

  if (strcmp(fc->name[position_kmax],"P_k_max_1/Mpc")) {
    k_max_old = strtof(fc->value[position_kmax],NULL);
    sprintf(fc->value[position_kmax],"%.15e",10.);
  }
  A_s_guess = 2.43e-9/0.87659*sigma8;
  sprintf(fc->value[position_As],"%.15e",A_s_guess);

  ccl_run_class(cosmo, fc,&pr,&ba,&th,&pt,&tr,&pm,&sp,&nl,&le,&op,init_arr,status);
  if (cosmo->status != CCL_ERROR_CLASS) A_s_guess*=pow(sigma8/sp.sigma8,2.);
  ccl_free_class_structs(cosmo, &ba,&th,&pt,&tr,&pm,&sp,&nl,&le,init_arr,status);

  if (k_max_old >0) {
    sprintf(fc->value[position_kmax],"%.15e",k_max_old);
  }
  return A_s_guess;
}

double ccl_linear_matter_power	(	ccl_cosmology *	cosmo,
		double	k,
		double	a,
		int *	status
	)

Linear matter power spectrum. Returns P_lin(k,a) [Mpc^3] for given cosmology, using the method specified in cosmo->config.transfer_function_method.

Parameters

cosmo	Cosmology parameters and configurations
k	Fourier mode, in [1/Mpc] units
a	scale factor, normalized to 1 for today
status	Status flag. 0 if there are no errors, nonzero otherwise. For specific cases see documentation for ccl_error.c

Returns

P_lin(k,a).

Definition at line 1506 of file ccl_power.c.

References A_MIN_EMU, ccl_spline_params::A_SPLINE_MINLOG_PK, ccl_cosmology_compute_power(), ccl_cosmology_set_status_message(), ccl_emulator, CCL_ERROR_INCONSISTENT, CCL_ERROR_SPLINE_EV, ccl_growth_factor(), ccl_power_extrapol_highk(), ccl_power_extrapol_lowk(), ccl_raise_gsl_warning(), ccl_splines, ccl_cosmology::computed_power, ccl_cosmology::config, ccl_cosmology::data, ccl_data::k_max_lin, ccl_data::k_min_lin, ccl_data::p_lin, and ccl_configuration::transfer_function_method.

Referenced by ccl_nonlin_matter_power(), ccl_twohalo_matter_power(), compare_bbks(), compare_eh(), compare_power_nu(), lin_pow_spec(), main(), sigmaR_integrand(), and sigmaV_integrand().

{
  if ((cosmo->config.transfer_function_method == ccl_emulator) && (a<A_MIN_EMU)){
    *status = CCL_ERROR_INCONSISTENT;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: the cosmic emulator cannot be used above a=%f\n",A_MIN_EMU);
    return NAN;
  }

  if (!cosmo->computed_power) ccl_cosmology_compute_power(cosmo, status);
  // Return if compilation failed
  //if (cosmo->data.p_lin == NULL) return NAN;
  if (!cosmo->computed_power) return NAN;

  double log_p_1;
  int gslstatus;

  if(a<ccl_splines->A_SPLINE_MINLOG_PK) {  //Extrapolate linearly at high redshift
    double pk0=ccl_linear_matter_power(cosmo,k,ccl_splines->A_SPLINE_MINLOG_PK,status);
    double gf=ccl_growth_factor(cosmo,a,status)/ccl_growth_factor(cosmo,ccl_splines->A_SPLINE_MINLOG_PK,status);

    return pk0*gf*gf;
  }
  if (*status!=CCL_ERROR_INCONSISTENT){
    if(k<=cosmo->data.k_min_lin) {
      log_p_1=ccl_power_extrapol_lowk(cosmo,k,a,cosmo->data.p_lin,cosmo->data.k_min_lin,status);

      return exp(log_p_1);
    }
    else if(k<cosmo->data.k_max_lin){
      gslstatus = gsl_spline2d_eval_e(cosmo->data.p_lin, log(k), a,NULL,NULL,&log_p_1);
      if(gslstatus != GSL_SUCCESS) {
        ccl_raise_gsl_warning(gslstatus, "ccl_power.c: ccl_linear_matter_power():");
        *status = CCL_ERROR_SPLINE_EV;
        ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_linear_matter_power(): Spline evaluation error\n");
        return NAN;
      }
      else {
        return exp(log_p_1);
      }
    }
    else { //Extrapolate using log derivative
      log_p_1 = ccl_power_extrapol_highk(cosmo,k,a,cosmo->data.p_lin,cosmo->data.k_max_lin,status);
      return exp(log_p_1);
    }
  }

  return exp(log_p_1);
}

double ccl_nonlin_matter_power	(	ccl_cosmology *	cosmo,
		double	k,
		double	a,
		int *	status
	)

Non-linear matter power spectrum. Returns P_NL(k,a) [Mpc^3] for given cosmology, using the method specified in cosmo->config.transfer_function_method and cosmo->config.matter_power_spectrum_method.

Parameters

cosmo	Cosmology parameters and configurations
k	Fourier mode, in [1/Mpc] units
a	scale factor, normalized to 1 for today
status	Status flag. 0 if there are no errors, nonzero otherwise. For specific cases see documentation for ccl_error.c

Returns

P_NL(k,a).

Definition at line 1562 of file ccl_power.c.

References A_MIN_EMU, ccl_spline_params::A_SPLINE_MINLOG_PK, ccl_configuration::baryons_power_spectrum_method, ccl_bcm, ccl_bcm_model_fka(), ccl_cosmology_compute_power(), ccl_cosmology_set_status_message(), ccl_emu, ccl_emulator, CCL_ERROR_EMULATOR_BOUND, CCL_ERROR_NOT_IMPLEMENTED, CCL_ERROR_SPLINE_EV, ccl_growth_factor(), ccl_halofit, ccl_linear, ccl_linear_matter_power(), ccl_power_extrapol_highk(), ccl_power_extrapol_lowk(), ccl_raise_gsl_warning(), ccl_raise_warning(), ccl_splines, ccl_cosmology::computed_power, ccl_cosmology::config, ccl_cosmology::data, ccl_data::k_max_nl, ccl_data::k_min_nl, ccl_configuration::matter_power_spectrum_method, ccl_data::p_nl, and ccl_configuration::transfer_function_method.

Referenced by ccl_correlation_3d(), cl_integrand(), compare_bcm(), compare_emu(), compare_emu_nu(), compare_power_nu_nl(), main(), non_lin_pow_spec(), and transfer_nc().

{
  double log_p_1, pk;

  switch(cosmo->config.matter_power_spectrum_method) {

  //If the matter PS specified was linear, then do the linear compuation
  case ccl_linear:
    return ccl_linear_matter_power(cosmo,k,a,status);

  case ccl_halofit:
    if (!cosmo->computed_power)
      ccl_cosmology_compute_power(cosmo, status);
    if (cosmo->data.p_nl == NULL) return NAN; // Return if computation failed

    if(a<ccl_splines->A_SPLINE_MINLOG_PK) { //Extrapolate linearly at high redshift
      double pk0=ccl_nonlin_matter_power(cosmo,k,ccl_splines->A_SPLINE_MINLOG_PK,status);
      double gf=ccl_growth_factor(cosmo,a,status)/ccl_growth_factor(cosmo,ccl_splines->A_SPLINE_MINLOG_PK,status);
      return pk0*gf*gf;
    }
        break;

  case ccl_emu:
    if ((cosmo->config.transfer_function_method == ccl_emulator) && (a<A_MIN_EMU)){
      *status = CCL_ERROR_EMULATOR_BOUND;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: the cosmic emulator cannot be used above z=2\n");
      return NAN;
    }

    // Compute power spectrum if needed; return if computation failed
    if (!cosmo->computed_power){
      ccl_cosmology_compute_power(cosmo,status);
    }
    if (cosmo->data.p_nl == NULL) return NAN;
        break;

  default:
    ccl_raise_warning(
            CCL_ERROR_NOT_IMPLEMENTED,
      "config.matter_power_spectrum_method = %d not yet supported "
            "continuing with linear power spectrum\n", cosmo->config.matter_power_spectrum_method);
    cosmo->config.matter_power_spectrum_method=ccl_linear;
    return ccl_linear_matter_power(cosmo,k,a,status);
  } // end switch

  // if we get here, try to evaluate the power spectrum
  // we need to account for bounds below and above
  if (k <= cosmo->data.k_min_nl) {
    // we assume no baryonic effects below k_min_nl
    log_p_1 = ccl_power_extrapol_lowk(cosmo, k, a, cosmo->data.p_nl, cosmo->data.k_min_nl, status);
    return exp(log_p_1);
  }

  if (k < cosmo->data.k_max_nl) {
    int gslstatus = gsl_spline2d_eval_e(cosmo->data.p_nl, log(k), a, NULL ,NULL, &log_p_1);
    if (gslstatus != GSL_SUCCESS) {
      ccl_raise_gsl_warning(gslstatus, "ccl_power.c: ccl_nonlin_matter_power():");
      *status = CCL_ERROR_SPLINE_EV;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_nonlin_matter_power(): Spline evaluation error\n");
      return NAN;
    } else {
      pk = exp(log_p_1);
    }
  } else {
    // Extrapolate NL regime using log derivative
    log_p_1 = ccl_power_extrapol_highk(cosmo, k, a, cosmo->data.p_nl, cosmo->data.k_max_nl, status);
    pk = exp(log_p_1);
  }

    // Add baryonic correction
  if (cosmo->config.baryons_power_spectrum_method == ccl_bcm) {
    int pwstatus = 0;
    double fbcm = ccl_bcm_model_fka(cosmo, k, a, &pwstatus);
    pk *= fbcm;
    if (pwstatus) {
      *status = CCL_ERROR_SPLINE_EV;
      ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_nonlin_matter_power(): Error in BCM correction\n");
      return NAN;
    }
  }

  return pk;
}

static double ccl_power_extrapol_highk ( ccl_cosmology *  cosmo, double  k, double  a, gsl_spline2d *  powerspl, double  kmax_spline, int *  status  )

static

Definition at line 1437 of file ccl_power.c.

References ccl_cosmology_set_status_message(), CCL_ERROR_SPLINE_EV, and ccl_raise_gsl_warning().

Referenced by ccl_linear_matter_power(), and ccl_nonlin_matter_power().

{
  double log_p_1;
  double deltak=1e-2; //step for numerical derivative;
  double deriv_pk_kmid,deriv2_pk_kmid;
  double lkmid;
  double lpk_kmid;

  lkmid = log(kmax_spline)-2*deltak;

  int gslstatus =  gsl_spline2d_eval_e(powerspl, lkmid,a,NULL ,NULL ,&lpk_kmid);
  if(gslstatus != GSL_SUCCESS) {
    ccl_raise_gsl_warning(gslstatus, "ccl_power.c: ccl_power_extrapol_highk():");
    *status = CCL_ERROR_SPLINE_EV;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_power_extrapol_highk(): Spline evaluation error\n");
    return NAN;
  }
  //GSL derivatives
  gslstatus = gsl_spline2d_eval_deriv_x_e (powerspl, lkmid, a, NULL,NULL,&deriv_pk_kmid);
  if(gslstatus != GSL_SUCCESS) {
    ccl_raise_gsl_warning(gslstatus, "ccl_power.c: ccl_power_extrapol_highk():");
    *status = CCL_ERROR_SPLINE_EV;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_power_extrapol_highk(): Spline evaluation error\n");
    return NAN;
  }
  gslstatus = gsl_spline2d_eval_deriv_xx_e (powerspl, lkmid, a, NULL,NULL,&deriv2_pk_kmid);
  if(gslstatus != GSL_SUCCESS) {
    ccl_raise_gsl_warning(gslstatus, "ccl_power.c: ccl_power_extrapol_highk():");
    *status = CCL_ERROR_SPLINE_EV;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_power_extrapol_highk(): Spline evaluation error\n");
    return NAN;
  }
  log_p_1=lpk_kmid+deriv_pk_kmid*(log(k)-lkmid)+deriv2_pk_kmid/2.*(log(k)-lkmid)*(log(k)-lkmid);

  return log_p_1;

}

static double ccl_power_extrapol_lowk ( ccl_cosmology *  cosmo, double  k, double  a, gsl_spline2d *  powerspl, double  kmin_spline, int *  status  )

static

Definition at line 1480 of file ccl_power.c.

References ccl_cosmology_set_status_message(), CCL_ERROR_SPLINE_EV, ccl_raise_gsl_warning(), ccl_parameters::n_s, and ccl_cosmology::params.

Referenced by ccl_linear_matter_power(), and ccl_nonlin_matter_power().

{
  double log_p_1;
  double deltak=1e-2; //safety step
  double lkmin=log(kmin_spline)+deltak;
  double lpk_kmin;
  int gslstatus = gsl_spline2d_eval_e(powerspl,lkmin,a,NULL,NULL,&lpk_kmin);

  if(gslstatus != GSL_SUCCESS) {
    ccl_raise_gsl_warning(gslstatus, "ccl_power.c: ccl_power_extrapol_lowk():");
    *status=CCL_ERROR_SPLINE_EV;
    ccl_cosmology_set_status_message(cosmo,"ccl_power.c: ccl_power_extrapol_lowk(): Spline evaluation error\n");
    return NAN;
  }

  return lpk_kmin+cosmo->params.n_s*(log(k)-lkmin);
}

static void ccl_run_class ( ccl_cosmology *  cosmo, struct file_content *  fc, struct precision *  pr, struct background *  ba, struct thermo *  th, struct perturbs *  pt, struct transfers *  tr, struct primordial *  pm, struct spectra *  sp, struct nonlinear *  nl, struct lensing *  le, struct output *  op, int *  init_arr, int *  status  )

static

Definition at line 160 of file ccl_power.c.

References ccl_class_preinit(), ccl_cosmology_set_status_message(), and CCL_ERROR_CLASS.

Referenced by ccl_cosmology_compute_power_class(), ccl_cosmology_compute_power_emu(), ccl_cosmology_write_power_class_z(), and ccl_get_class_As().

{
  ErrorMsg errmsg;            // for error messages
  int i_init=0;
  ccl_class_preinit(ba,th,pt,tr,pm,sp,nl,le);

  if(input_init(fc,pr,ba,th,pt,tr,pm,sp,nl,le,op,errmsg) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error running CLASS input:%s\n", errmsg);
    return;
  }
  if (background_init(pr,ba) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error running CLASS background:%s\n", ba->error_message);
    return;
  }
  init_arr[i_init++]=1;
  if (thermodynamics_init(pr,ba,th) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error running CLASS thermodynamics:%s\n", th->error_message);
    return;
  }
  init_arr[i_init++]=1;
  if (perturb_init(pr,ba,th,pt) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error running CLASS pertubations:%s\n", pt->error_message);
    return;
  }
  init_arr[i_init++]=1;
  if (primordial_init(pr,pt,pm) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error running CLASS primordial:%s\n", pm->error_message);
    return;
  }
  init_arr[i_init++]=1;
  if (nonlinear_init(pr,ba,th,pt,pm,nl) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error running CLASS nonlinear:%s\n", nl->error_message);
    return;
  }
  init_arr[i_init++]=1;
  if (transfer_init(pr,ba,th,pt,nl,tr) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error running CLASS transfer:%s\n", tr->error_message);
    return;
  }
  init_arr[i_init++]=1;
  if (spectra_init(pr,ba,pt,pm,nl,tr,sp) == _FAILURE_) {
    *status = CCL_ERROR_CLASS;
    ccl_cosmology_set_status_message(cosmo, "ccl_power.c: ccl_cosmology_compute_power_class(): Error running CLASS spectra:%s\n", sp->error_message);
    return;
  }
  init_arr[i_init++]=1;
}

double ccl_sigma8	(	ccl_cosmology *	cosmo,
		int *	status
	)

Computes sigma8, variance of the matter density field with (top-hat) smoothing scale R = 8 Mpc/h, from linear power spectrum. Returns sigma8 for specified cosmology.

Parameters

cosmo	Cosmology parameters and configurations
status	Status flag. 0 if there are no errors, nonzero otherwise. For specific cases see documentation for ccl_error.c

Returns

sigma8.

Definition at line 1777 of file ccl_power.c.

References ccl_sigmaR(), ccl_parameters::h, and ccl_cosmology::params.

Referenced by ccl_cosmology_compute_power_bbks(), ccl_cosmology_compute_power_eh(), main(), and norm_pwr().

{
  return ccl_sigmaR(cosmo,8/cosmo->params.h, 1.,status);
}

double ccl_sigmaR	(	ccl_cosmology *	cosmo,
		double	R,
		double	a,
		int *	status
	)

Variance of the matter density field with (top-hat) smoothing scale R [Mpc]. Returns sigma(R) for specified cosmology at a = 1.

Parameters

cosmo	Cosmology parameters and configurations
R	Smoothing scale, in [Mpc] units
a	scale factor
status	Status flag. 0 if there are no errors, nonzero otherwise. For specific cases see documentation for ccl_error.c

Returns

sigma(R).

Definition at line 1715 of file ccl_power.c.

References ccl_growth_factor(), ccl_gsl, ccl_raise_gsl_warning(), ccl_splines, cl_cmbl_bm::cosmo, SigmaR_pars::cosmo, ccl_gsl_params::INTEGRATION_SIGMAR_EPSREL, ccl_spline_params::K_MAX, ccl_spline_params::K_MIN, M_PI, ccl_gsl_params::N_ITERATION, SigmaR_pars::R, sigmaR_integrand(), sqrt(), and SigmaR_pars::status.

Referenced by ccl_cosmology_compute_sigma(), ccl_sigma8(), and main().

{
  SigmaR_pars par;
  par.status = status;

  par.cosmo=cosmo;
  par.R=R;
  gsl_integration_cquad_workspace *workspace=gsl_integration_cquad_workspace_alloc(ccl_gsl->N_ITERATION);
  gsl_function F;
  F.function=&sigmaR_integrand;
  F.params=∥
  double sigma_R;
  int gslstatus = gsl_integration_cquad(&F, log10(ccl_splines->K_MIN), log10(ccl_splines->K_MAX),
                                                0.0, ccl_gsl->INTEGRATION_SIGMAR_EPSREL,
                                        workspace,&sigma_R,NULL,NULL);
  if(gslstatus != GSL_SUCCESS) {
    ccl_raise_gsl_warning(gslstatus, "ccl_power.c: ccl_sigmaR():");
    *status |= gslstatus;
  }

  gsl_integration_cquad_workspace_free(workspace);

  return sqrt(sigma_R*M_LN10/(2*M_PI*M_PI))*ccl_growth_factor(cosmo, a, status);
}

double ccl_sigmaV	(	ccl_cosmology *	cosmo,
		double	R,
		double	a,
		int *	status
	)

Variance of the displacement field with (top-hat) smoothing scale R [Mpc] Returns sigma(V(R)) for specified cosmology at a = 1.

Parameters

cosmo	Cosmology parameters and configurations
R	smoothing scale, in [Mpc] units
a	scale factor
status	Status flag. 0 if there are no errors, nonzero otherwise. For specific cases see documentation for ccl_error.c

Returns

sigma(R).

Definition at line 1746 of file ccl_power.c.

References ccl_growth_factor(), ccl_gsl, ccl_raise_gsl_warning(), ccl_splines, cl_cmbl_bm::cosmo, SigmaV_pars::cosmo, ccl_gsl_params::INTEGRATION_SIGMAR_EPSREL, ccl_spline_params::K_MAX, ccl_spline_params::K_MIN, M_PI, ccl_gsl_params::N_ITERATION, SigmaV_pars::R, sigmaV_integrand(), sqrt(), and SigmaV_pars::status.

{
  SigmaV_pars par;
  par.status = status;

  par.cosmo=cosmo;
  par.R=R;
  gsl_integration_cquad_workspace *workspace=gsl_integration_cquad_workspace_alloc(ccl_gsl->N_ITERATION);
  gsl_function F;
  F.function=&sigmaV_integrand;
  F.params=∥
  double sigma_V;
    int gslstatus = gsl_integration_cquad(&F, log10(ccl_splines->K_MIN), log10(ccl_splines->K_MAX),
                                                                                0.0, ccl_gsl->INTEGRATION_SIGMAR_EPSREL,
                                                                                workspace,&sigma_V,NULL,NULL);

  if(gslstatus != GSL_SUCCESS) {
    ccl_raise_gsl_warning(gslstatus, "ccl_power.c: ccl_sigmaV():");
    *status |= gslstatus;
  }

  gsl_integration_cquad_workspace_free(workspace);

  return sqrt(sigma_V*M_LN10/(2*M_PI*M_PI))*ccl_growth_factor(cosmo, a, status);
}

static double eh_power ( ccl_parameters *  params, eh_struct *  eh, double  k, int  wiggled  )

static

Definition at line 836 of file ccl_power.c.

References ccl_parameters::h, ccl_parameters::n_s, pow(), and tsqr_EH().

Referenced by ccl_cosmology_compute_power_eh().

{
  //Wavenumber in units of Mpc^-1
  double kinvh=k/params->h; //Changed to h/Mpc
  return pow(k,params->n_s)*tsqr_EH(params,eh,kinvh,wiggled);
}

static eh_struct* eh_struct_new ( ccl_parameters *  params )

static

Definition at line 678 of file ccl_power.c.

References eh_struct::alphab, eh_struct::alphac, eh_struct::betab, eh_struct::betac, eh_struct::bnode, ccl_parameters::h, eh_struct::keq, eh_struct::kSilk, ccl_parameters::Omega_b, ccl_parameters::Omega_m, pow(), eh_struct::rsound, eh_struct::rsound_approx, sqrt(), ccl_parameters::T_CMB, eh_struct::th2p7, eh_struct::zdrag, and eh_struct::zeq.

Referenced by ccl_cosmology_compute_power_eh().

{
  // Computes Eisenstein & Hu parameters for
  // P_k and r_sound
  // see astro-ph/9709112 for the relevant equations
  double OMh2,OBh2;
  double th2p7;
  eh_struct *eh=malloc(sizeof(eh_struct));
  if(eh==NULL)
    return NULL;

  OMh2=params->Omega_m*params->h*params->h; //Cosmo params scaled by h^2
  OBh2=params->Omega_b*params->h*params->h;
  th2p7=params->T_CMB/2.7; //This is Theta_{2.7} in E&Hu notation
  eh->th2p7=th2p7; //This is Theta_{2.7} in E&Hu notation
  eh->zeq=2.5E4*OMh2/pow(th2p7,4);// Eq 2
  eh->keq=0.0746*OMh2/(params->h*th2p7*th2p7);//Eq. 3

  //These group corresponds to Eq. 4
  double b1,b2;
  b1=0.313*pow(OMh2,-0.419)*(1+0.607*pow(OMh2,0.674));
  b2=0.238*pow(OMh2,0.223);
  eh->zdrag=1291*pow(OMh2,0.251)*(1+b1*pow(OBh2,b2))/(1+0.659*pow(OMh2,0.828));

  //These are the baryon-to-photon ratios
  //at equality (Req) and drag (Rd) epochs
  //Eq. 5
  double Req,Rd;
  Req=31.5*OBh2*1000./(eh->zeq*pow(th2p7,4));
  Rd=31.5*OBh2*1000./((1+eh->zdrag)*pow(th2p7,4));
  eh->rsound=2/(3*eh->keq)*sqrt(6/Req)*
    log((sqrt(1+Rd)+sqrt(Rd+Req))/(1+sqrt(Req)));

  //This is Eq. 7 (but in h/Mpc)
  eh->kSilk=1.6*pow(OBh2,0.52)*pow(OMh2,0.73)*(1+pow(10.4*OMh2,-0.95))/params->h;

  //These are Eqs. 11
  double a1,a2,b_frac;
  a1=pow(46.9*OMh2,0.670)*(1+pow(32.1*OMh2,-0.532));
  a2=pow(12.0*OMh2,0.424)*(1+pow(45.0*OMh2,-0.582));
  b_frac=OBh2/OMh2;
  eh->alphac=pow(a1,-b_frac)*pow(a2,-b_frac*b_frac*b_frac);

  //These are Eqs. 12
  double bb1,bb2;
  bb1=0.944/(1+pow(458*OMh2,-0.708));
  bb2=pow(0.395*OMh2,-0.0266);
  eh->betac=1/(1+bb1*(pow(1-b_frac,bb2)-1));

  double y=eh->zeq/(1+eh->zdrag);
  double sqy=sqrt(1+y);
  double gy=y*(-6*sqy+(2+3*y)*log((sqy+1)/(sqy-1))); //Eq 15
  //Baryon suppression Eq. 14
  eh->alphab=2.07*eh->keq*eh->rsound*pow(1+Rd,-0.75)*gy;

  //Baryon envelope shift Eq. 24
  eh->betab=0.5+b_frac+(3-2*b_frac)*sqrt(pow(17.2*OMh2,2)+1);

  //Node shift parameter Eq. 23
  eh->bnode=8.41*pow(OMh2,0.435);

  //Approx for the sound horizon, Eq. 26
  eh->rsound_approx=params->h*44.5*log(9.83/OMh2)/
    sqrt(1+10*pow(OBh2,0.75));

  return eh;
}

static double jbes0 ( double  x )

static

Definition at line 768 of file ccl_power.c.

References x.

Referenced by tkEH_b().

{
  double jl;
  double ax2=x*x;

  if(ax2<1e-4) jl=1-ax2*(1-ax2/20.)/6.;
  else jl=sin(x)/x;

  return jl;
}

static double sigmaR_integrand ( double  lk, void *  params  )

static

Definition at line 1685 of file ccl_power.c.

References ccl_linear_matter_power(), SigmaR_pars::cosmo, pow(), SigmaR_pars::R, SigmaR_pars::status, w, and w_tophat().

Referenced by ccl_sigmaR().

{
  SigmaR_pars *par=(SigmaR_pars *)params;

  double k=pow(10.,lk);
  double pk=ccl_linear_matter_power(par->cosmo,k, 1.,par->status);
  double kR=k*par->R;
  double w = w_tophat(kR);

  return pk*k*k*k*w*w;
}

static double sigmaV_integrand ( double  lk, void *  params  )

static

Definition at line 1698 of file ccl_power.c.

References ccl_linear_matter_power(), SigmaV_pars::cosmo, pow(), SigmaV_pars::R, SigmaV_pars::status, w, and w_tophat().

Referenced by ccl_sigmaV().

{
  SigmaV_pars *par=(SigmaV_pars *)params;

  double k=pow(10.,lk);
  double pk=ccl_linear_matter_power(par->cosmo,k, 1.,par->status);
  double kR=k*par->R;
  double w = w_tophat(kR);

  return pk*k*w*w/3.0;
}

static double tkEH_0 ( double  keq, double  k, double  a, double  b  )

static

Definition at line 747 of file ccl_power.c.

References cl_cmbl_bm::c, cl_cmbl_bm::l, and pow().

Referenced by tkEH_b(), and tkEH_c().

{
  // Eisentstein & Hu's Tk_0
  // see astro-ph/9709112 for the relevant equations
  double q=k/(13.41*keq); //Eq 10
  double c=14.2/a+386./(1+69.9*pow(q,1.08)); //Eq 20
  double l=log(M_E+1.8*b*q); //Change of var for Eq 19
  return l/(l+c*q*q); //Returns Eq 19
}

static double tkEH_b ( eh_struct *  eh, double  k  )

static

Definition at line 779 of file ccl_power.c.

References eh_struct::alphab, eh_struct::betab, eh_struct::bnode, jbes0(), eh_struct::keq, eh_struct::kSilk, pow(), eh_struct::rsound, tkEH_0(), and x.

Referenced by tsqr_EH().

{
  // Eisenstein & Hu's Tk_b (Eq 21)
  // see astro-ph/9709112 for the relevant equations
  double x_bessel,part1,part2,jbes;
  double x=k*eh->rsound;

  //First term of Eq. 21
  if(k==0) x_bessel=0;
  else {
    x_bessel=x*pow(1+eh->bnode*eh->bnode*eh->bnode/(x*x*x),-1./3.);
  }

  part1=tkEH_0(eh->keq,k,1,1)/(1+pow(x/5.2,2));

  //Second term of Eq. 21
  if(k==0)
    part2=0;
  else
    part2=eh->alphab/(1+pow(eh->betab/x,3))*exp(-pow(k/eh->kSilk,1.4));

  return jbes0(x_bessel)*(part1+part2);
}

static double tkEH_c ( eh_struct *  eh, double  k  )

static

Definition at line 758 of file ccl_power.c.

References eh_struct::alphac, eh_struct::betac, eh_struct::keq, pow(), eh_struct::rsound, and tkEH_0().

Referenced by tsqr_EH().

{
  // Eisenstein & Hu's Tk_c
  // see astro-ph/9709112 for the relevant equations
  double f=1/(1+pow(k*eh->rsound/5.4,4)); //Eq 18
  return f*tkEH_0(eh->keq,k,1,eh->betac)+
    (1-f)*tkEH_0(eh->keq,k,eh->alphac,eh->betac); //Returns Eq 17
}

static double tsqr_BBKS ( ccl_parameters *  params, double  k  )

static

Definition at line 995 of file ccl_power.c.

References ccl_parameters::h, ccl_parameters::Omega_b, ccl_parameters::Omega_m, and pow().

Referenced by bbks_power().

{
  double q = k/(params->Omega_m*params->h*params->h*exp(-params->Omega_b*(1.0+pow(2.*params->h,.5)/params->Omega_m)));
  return pow(log(1.+2.34*q)/(2.34*q),2.0)/pow(1.+3.89*q+pow(16.1*q,2.0)+pow(5.46*q,3.0)+pow(6.71*q,4.0),0.5);
}

static double tsqr_EH ( ccl_parameters *  params, eh_struct *  eh, double  k, int  wiggled  )

static

Definition at line 804 of file ccl_power.c.

References ccl_parameters::h, ccl_parameters::Omega_b, ccl_parameters::Omega_m, pow(), eh_struct::rsound_approx, eh_struct::th2p7, tkEH_b(), and tkEH_c().

Referenced by eh_power().

{
  // Eisenstein & Hu's Tk_c
  // see astro-ph/9709112 for the relevant equations
  // Notice the last parameter in eh_power controls
  // whether to introduce wiggles (BAO) in the power spectrum.
  // We do this by default when obtaining the power spectrum.
  double tk;
  double b_frac=params->Omega_b/params->Omega_m;
  if(wiggled)
    //Case with baryons (Eq 8)
    tk=b_frac*tkEH_b(eh,k)+(1-b_frac)*tkEH_c(eh,k);
  else {
    //Zero baryon case (sec 4.2)
    double OMh2=params->Omega_m*params->h*params->h;
    // Compute Eq. 31
    double alpha_gamma=1-0.328*log(431*OMh2)*b_frac+0.38*log(22.3*OMh2)*b_frac*b_frac;
    // Compute Eq. 30
    double gamma_eff=params->Omega_m*params->h*(alpha_gamma+(1-alpha_gamma)/
                        (1+pow(0.43*k*eh->rsound_approx,4)));
    // Compute Eq. 28 (assume k in h/Mpc)
    double q=k*eh->th2p7*eh->th2p7/gamma_eff;
    // Compute Eqs. 29
    double l0=log(2*M_E+1.8*q);
    double c0=14.2+731/(1+62.5*q);
    tk=l0/(l0+c0*q*q); //T_0 of Eq. 29
  }

  return tk*tk; //Return T_0^2
}

static double w_tophat ( double  kR )

static

Definition at line 1663 of file ccl_power.c.

References w.

Referenced by sigmaR_integrand(), and sigmaV_integrand().

{
  double w;
  double kR2 = kR*kR;

  // This is the Maclaurin expansion of W(x)=[sin(x)-xcos(x)]*(3/x)**3 to O(x^7), with x=kR.
  // Necessary numerically because at low x W(x) relies on the fine cancellation of two terms
  if(kR<0.1) {
     w = 1. + kR2*(-0.1 +
           kR2*(0.003561429 +
            kR2*(-6.61376e-5 +
                 kR2*(7.51563e-7))));
     /*w =1.-0.1*kR*kR+0.003571429*kR*kR*kR*kR
      -6.61376E-5*kR*kR*kR*kR*kR*kR
      +7.51563E-7*kR*kR*kR*kR*kR*kR*kR*kR;*/
  }
  else
    w = 3.*(sin(kR) - kR*cos(kR))/(kR2*kR);
  return w;
}
