ccl_redshifts.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include <gsl/gsl_integration.h>
#include <gsl/gsl_spline.h>
#include <gsl/gsl_errno.h>
#include "ccl.h"
#include "ccl_params.h"
#include "ccl_redshifts.h"

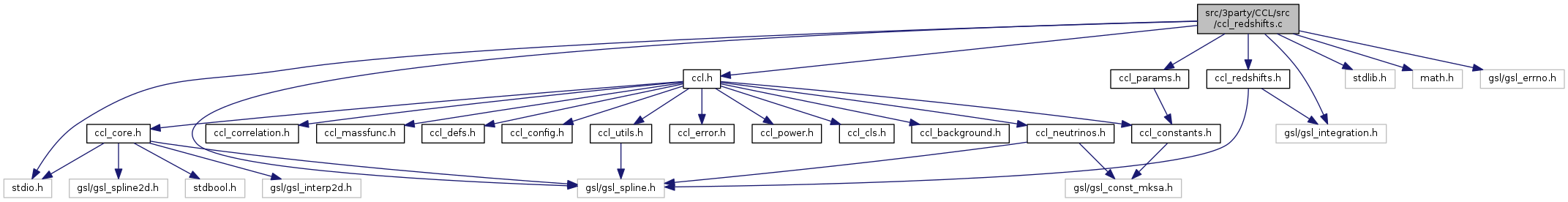

Include dependency graph for ccl_redshifts.c:

Go to the source code of this file.

Classes
struct	pz_params
struct	norm_params

Functions
pz_info *	ccl_create_photoz_info (void *params, double(*pz_func)(double, double, void *, int *))
static double	ccl_photoz (double z_ph, void *params)
double	gaussian_pz (double z_ph, double z_s, void *params, int *status)
pz_info *	ccl_create_gaussian_photoz_info (double sigma_z0)
void	ccl_free_photoz_info (pz_info *my_photoz_info)
dNdz_info *	ccl_create_dNdz_info (void *params, double(*dNdz_func)(double, void *, int *))
double	dNdz_smail (double z, void *params, int *status)
dNdz_info *	ccl_create_Smail_dNdz_info (double alpha, double beta, double z0)
static double	ccl_dNdz (double z, dNdz_info *params, int *status)
void	ccl_free_dNdz_info (dNdz_info *my_dNdz_info)
static double	ccl_norm_integrand (double z, void *params)
void	ccl_dNdz_tomog (double z, double bin_zmin, double bin_zmax, pz_info *photo_info, dNdz_info *dN_info, double *tomoout, int *status)

Function Documentation

dNdz_info* ccl_create_dNdz_info	(	void *	params,
		double(*)(double, void *, int *)	dNdz_func
	)

This function creates a structure amalgamating the information on an analytic true dNdz, plus some parameters.

Parameters

params	parameters for the analytic dNdz form
dNdz_func	dNdz function

Returns

a structure with the dNdz and parameters

Definition at line 94 of file ccl_redshifts.c.

References halomod_bm::params, and dNdz_info::your_dN_params.

Referenced by main().

{
  dNdz_info * this_info = malloc(sizeof(dNdz_info));
  this_info ->your_dN_params = params;
  this_info -> your_dN_func = dNdz_func;

  return this_info;
}

pz_info* ccl_create_gaussian_photoz_info

(

double

sigma_z0

)

This function creates a structure containing the photo-z model for the built-in Gaussian photo-z pdf.

Parameters

sigma_z0

The photo-z uncertainty at z=0. The photo-z uncertainty is assumed to scale like (1 + z).

Returns

a structure with the built-in Gaussian P(z) and parameters

Definition at line 67 of file ccl_redshifts.c.

References gaussian_pz(), pz_info::your_pz_func, and pz_info::your_pz_params.

Referenced by main().

                                                         {

    // Allocate memory so that this value persists
    double* sigma_z0_copy = malloc(sizeof(double));
    *sigma_z0_copy = sigma_z0;

    // Construct pz_info struct
    pz_info * this_info = malloc(sizeof(pz_info));
    this_info->your_pz_params = sigma_z0_copy;
    this_info->your_pz_func = &gaussian_pz;
    return this_info;
}

pz_info* ccl_create_photoz_info	(	void *	params,
		double(*)(double, double, void *, int *)	pz_func
	)

This function creates a structure amalgamating the information on the photo-z model, P(z) plus some parameters.

Parameters

params	parameters for the P(z) function
pz_func	P(z) function

Returns

a structure with the P(z) and parameters

Definition at line 21 of file ccl_redshifts.c.

References halomod_bm::params, and pz_info::your_pz_params.

Referenced by main().

{
  pz_info * this_info = malloc(sizeof(pz_info));
  this_info ->your_pz_params = params;
  this_info -> your_pz_func = pz_func;

  return this_info;
}

dNdz_info* ccl_create_Smail_dNdz_info	(	double	alpha,
		double	beta,
		double	z0
	)

This function creates a structure containing the true dNdz for the built-in Smail-type analytic form: dNdz ~ z^alpha exp(- (z/z0)^beta)

Parameters

alpha
z0
beta

Returns

a structure with the built-in Smail-type dNdz and parameters

Definition at line 120 of file ccl_redshifts.c.

References smail_params::alpha, beta, smail_params::beta, dNdz_smail(), dNdz_info::your_dN_func, dNdz_info::your_dN_params, and smail_params::z0.

Referenced by main().

                                                                           {

    // Allocate a smail type parmaeter structure
    smail_params * smail_par = malloc(sizeof(smail_params));
    smail_par->alpha = alpha;
    smail_par->beta = beta;
    smail_par->z0 = z0;

    // Construct dNdz_info struct
    dNdz_info * this_info = malloc(sizeof(dNdz_info));
    this_info->your_dN_params = smail_par;
    this_info->your_dN_func = &dNdz_smail;
    return this_info;
}

static double ccl_dNdz ( double  z, dNdz_info *  params, int *  status  )

static

Definition at line 142 of file ccl_redshifts.c.

References pz_params::status, dNdz_info::your_dN_func, dNdz_info::your_dN_params, and z.

Referenced by ccl_dNdz_tomog(), and ccl_norm_integrand().

{

  return (params->your_dN_func)(z, params->your_dN_params, status);
}

void ccl_dNdz_tomog	(	double	z,
		double	bin_zmin,
		double	bin_zmax,
		pz_info *	photo_info,
		dNdz_info *	dN_info,
		double *	tomoout,
		int *	status
	)

Return dNdz in a particular tomographic bin, convolved with a photo-z model (defined by the user), and normalized.

Parameters

z	redshift
dNdz_type	the choice of dN/dz from Chang+
bin_zmin	the minimum redshift of the tomorgraphic bin
bin_zmax	the maximum redshift of the tomographic bin
photo_info	the P(z) info struct
tomoout	the output dN/dz
status	Status flag. 0 if there are no errors, nonzero otherwise.

Returns

void

Definition at line 222 of file ccl_redshifts.c.

References norm_params::bin_zmax_, norm_params::bin_zmin_, ccl_cosmology_read_config(), ccl_dNdz(), CCL_ERROR_INTEG, CCL_ERROR_MISSING_CONFIG_FILE, ccl_gsl, ccl_norm_integrand(), ccl_photoz(), ccl_raise_exception(), ccl_raise_gsl_warning(), ccl_splines, norm_params::dN_information, ccl_gsl_params::INTEGRATION_DNDZ_EPSREL, ccl_gsl_params::N_ITERATION, pz_params::pz_information, norm_params::pz_information, pz_params::status, norm_params::status, z, Z_MAX_SOURCES, Z_MIN_SOURCES, and pz_params::z_true.

Referenced by main().

{
  // This uses equation 33 of Joachimi & Schneider 2009, arxiv:0905.0393
  double numerator_integrand=0, denom_integrand=0, dNdz_t;
  // This struct contains a spec redshift and a pointer to a photoz information struct.
  struct pz_params pz_p_val; //parameters for the integral over the photoz's
  struct norm_params norm_p_val;

  // Check whether ccl_splines and ccl_gsl exist; exit gracefully if they
  // can't be loaded
  if(ccl_splines==NULL || ccl_gsl==NULL) ccl_cosmology_read_config();
  if(ccl_splines==NULL || ccl_gsl==NULL) {
    ccl_raise_exception(CCL_ERROR_MISSING_CONFIG_FILE,
                        "ccl_redshifts.c: Failed to read config file.");
    *status = CCL_ERROR_MISSING_CONFIG_FILE;
    return;
  }

  // Set up the parameters to pass to the normalising integral (of type struct norm_params
  norm_p_val.bin_zmin_=bin_zmin;
  norm_p_val.bin_zmax_=bin_zmax;
  norm_p_val.pz_information = photo_info;
  norm_p_val.status = status;
  norm_p_val.dN_information = dN_info;

  dNdz_t = ccl_dNdz(z, dN_info, status);

  // Set up the parameters for the integral over the photo z function in the numerator (of type struct pz_params)
  pz_p_val.z_true = z;
  pz_p_val.status = status;
  pz_p_val.pz_information = photo_info; // pointer to user information

  // Integrate over the assumed pdf of photo-z wrt true-z in this bin (this goes in the numerator of the result):
  gsl_integration_cquad_workspace * workspace = gsl_integration_cquad_workspace_alloc(ccl_gsl->N_ITERATION);
  gsl_function F;
  F.function = ccl_photoz;
  F.params = &pz_p_val;
  int gslstatus = gsl_integration_cquad(&F, bin_zmin, bin_zmax, 0.0,ccl_gsl->INTEGRATION_DNDZ_EPSREL,workspace,&numerator_integrand, NULL, NULL);
  if(gslstatus != GSL_SUCCESS) {
    ccl_raise_gsl_warning(gslstatus, "ccl_redshifts.c: ccl_norm_integrand():");
    *status |= gslstatus;
  }
  gsl_integration_cquad_workspace_free(workspace);

  // Now get the denominator, which normalizes dNdz over the photometric bin
  workspace = gsl_integration_cquad_workspace_alloc(ccl_gsl->N_ITERATION);
  F.function = ccl_norm_integrand;
  F.params = &norm_p_val;
  gslstatus = gsl_integration_cquad(&F, Z_MIN_SOURCES, Z_MAX_SOURCES, 0.0,ccl_gsl->INTEGRATION_DNDZ_EPSREL,workspace,&denom_integrand, NULL, NULL);
  if(gslstatus != GSL_SUCCESS) {
    ccl_raise_gsl_warning(gslstatus, "ccl_redshifts.c: ccl_norm_integrand():");
    *status |= gslstatus;
  }

  gsl_integration_cquad_workspace_free(workspace);
  if (*status) {
    *status = CCL_ERROR_INTEG;
    return;
  }
  *tomoout = dNdz_t * numerator_integrand / denom_integrand;

}

void ccl_free_dNdz_info

(

dNdz_info *

dN_info

)

Free memory holding the structure containing dNdz information.

Parameters

dN_info

that holds user-defined dNdz and parameters

Returns

void

Definition at line 152 of file ccl_redshifts.c.

Referenced by main().

{
  free(my_dNdz_info);
}

void ccl_free_photoz_info

(

pz_info *

my_photoz_info

)

Free memory holding the structure containing user-input photoz information.

Parameters

my_photoz_info

that holds user-defined P(z) and parameters

Returns

void

Definition at line 84 of file ccl_redshifts.c.

Referenced by main().

{
  free(my_photoz_info);
}

static double ccl_norm_integrand ( double  z, void *  params  )

static

Definition at line 173 of file ccl_redshifts.c.

References norm_params::bin_zmax_, norm_params::bin_zmin_, ccl_cosmology_read_config(), ccl_dNdz(), CCL_ERROR_MISSING_CONFIG_FILE, ccl_gsl, ccl_photoz(), ccl_raise_exception(), ccl_raise_gsl_warning(), ccl_splines, norm_params::dN_information, ccl_gsl_params::INTEGRATION_DNDZ_EPSREL, ccl_gsl_params::N_ITERATION, p, pz_params::pz_information, pz_params::status, norm_params::status, z, and pz_params::z_true.

Referenced by ccl_dNdz_tomog().

{

  // This is a struct that contains a true redshift and a pointer to the information about the photo_z model
  struct pz_params pz_val_p; // parameters for the photoz pdf wrt true-z

  double pz_int=0; // pointer to the value of the integral over the photoz model
  struct norm_params *p = (struct norm_params *) params; // parameters of the current function (because of form required for gsl integration)

  double z_min = p->bin_zmin_;
  double z_max = p->bin_zmax_;

  // Check whether ccl_splines and ccl_gsl exist; exit gracefully if they
  // can't be loaded
  if(ccl_splines==NULL || ccl_gsl==NULL) ccl_cosmology_read_config();
  if(ccl_splines==NULL || ccl_gsl==NULL) {
    ccl_raise_exception(CCL_ERROR_MISSING_CONFIG_FILE,
                        "ccl_redshift.c: Failed to read config file.");
    return NAN;
  }

  // Set up parameters for the pz part of the intermediary integral.
  pz_val_p.z_true = z;
  pz_val_p.status = p->status;
  pz_val_p.pz_information = p-> pz_information;

  // Do the intermediary integral over the model relating  photo-z to true-z
  gsl_integration_cquad_workspace * workspace = gsl_integration_cquad_workspace_alloc(ccl_gsl->N_ITERATION);
  gsl_function F;
  F.function = ccl_photoz;
  F.params = &pz_val_p;
  int gslstatus = gsl_integration_cquad(&F, z_min, z_max, 0.0,ccl_gsl->INTEGRATION_DNDZ_EPSREL,workspace,&pz_int, NULL, NULL);
  if(gslstatus != GSL_SUCCESS) {
    ccl_raise_gsl_warning(gslstatus, "ccl_redshifts.c: ccl_specs_norm_integrand():");
    *p->status|= gslstatus;
  }
  gsl_integration_cquad_workspace_free(workspace);

  return ccl_dNdz(z, p->dN_information, p->status) * pz_int ;
}

static double ccl_photoz ( double  z_ph, void *  params  )

static

Definition at line 44 of file ccl_redshifts.c.

References p, pz_params::pz_information, pz_params::status, pz_info::your_pz_func, pz_info::your_pz_params, and pz_params::z_true.

Referenced by ccl_dNdz_tomog(), and ccl_norm_integrand().

{
  struct pz_params * p = (struct pz_params *) params;
  pz_info * user_stuff = (pz_info*) p->pz_information;
  double z_s = p->z_true;

  return (user_stuff->your_pz_func)(z_ph, z_s, user_stuff->your_pz_params,p->status);
}

double dNdz_smail	(	double	z,
		void *	params,
		int *	status
	)

Definition at line 107 of file ccl_redshifts.c.

References beta, and pow().

Referenced by ccl_create_Smail_dNdz_info().

                                                      {
    double alpha = ((smail_params*) params)->alpha;
    double beta = ((smail_params*) params)->beta;
    double z0 = ((smail_params*) params)->z0;

    return pow(z, alpha) * exp(- pow(z/z0, beta) );
}

double gaussian_pz	(	double	z_ph,
		double	z_s,
		void *	params,
		int *	status
	)

Definition at line 54 of file ccl_redshifts.c.

References M_PI, and sqrt().

Referenced by ccl_create_gaussian_photoz_info().

                                                                      {
    double sigma_z0 = *((double*) params);

    double sigma_z = sigma_z0 * (1. + z_s);
    return exp(- (z_ph - z_s)*(z_ph - z_s) / (2.*sigma_z*sigma_z)) \
         / (sqrt(2.*M_PI) *sigma_z);
}
