core_out.cpp File Reference

functions handling output of the program More...

#include <iomanip>
#include <boost/filesystem.hpp>
#include "core_out.h"
#include "class_particles.hpp"

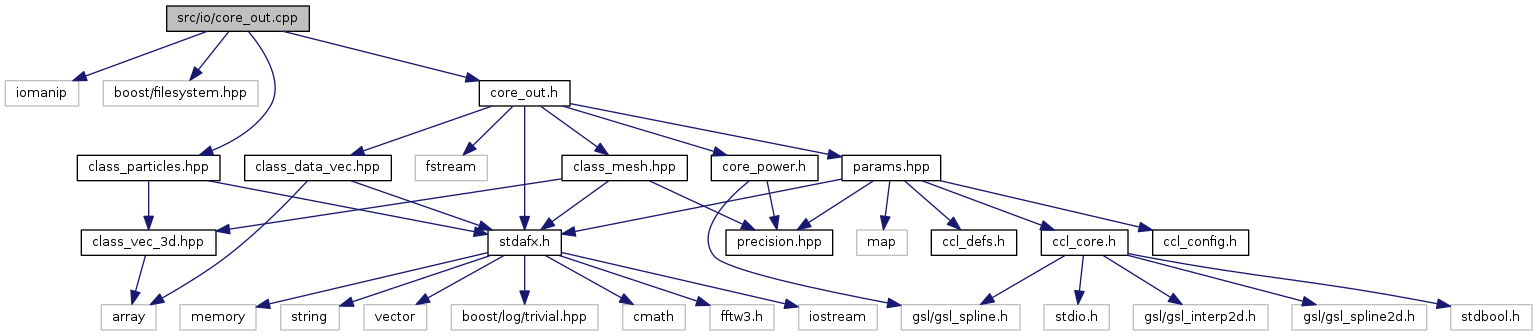

Include dependency graph for core_out.cpp:

Go to the source code of this file.

Macros
#define	BUFF_SIZE   1024 * 1024 * 16
#define	HALF_THICKNESS   2
#define	MAX_SIZE   512

Functions
std::string	currentDateTime ()
std::string	std_out_dir (const std::string &pre_subdir, const Sim_Param &sim)
void	create_dir (const std::string &out_dir)
void	remove_dir (const std::string &out_dir)
void	remove_all_files (const std::string &out_dir)
template<class T >
void	print_par_pos_cut_small (const std::vector< T > &particles, const Sim_Param &sim, std::string out_dir, std::string suffix)
void	print_pow_spec (const Data_Vec< double, 2 > &pwr_spec_binned, std::string out_dir, std::string suffix)
void	print_vel_pow_spec (const Data_Vec< double, 2 > &pwr_spec_binned, std::string out_dir, std::string suffix)
void	print_corr_func (const Data_Vec< double, 2 > &pwr_spec_binned, std::string out_dir, std::string suffix)
template<typename T >
T	rel_error (const T &a, const T &b)
template<typename T >
bool	is_err (const std::vector< T > &vec1, const std::vector< T > &vec2, size_t bin)
void	print_pow_spec_diff (const Data_Vec< double, 2 > &pwr_spec_binned, const Data_Vec< double, 2 > &pwr_spec_binned_0, double growth, std::string out_dir, std::string suffix)
void	print_pow_spec_diff (const Data_Vec< double, 2 > &pwr_spec_binned, const Interp_obj &pwr_spec_input, double growth, std::string out_dir, std::string suffix)
void	print_pow_spec_diff (const Data_Vec< double, 2 > &pwr_spec_binned, const Data_Vec< double, 2 > &pwr_spec_binned_0, const Interp_obj &pwr_spec_input, double growth_now, double growth_init, std::string out_dir, std::string suffix)
void	print_vel_pow_spec_diff (const Data_Vec< double, 2 > &pwr_spec_binned, const Data_Vec< double, 2 > &pwr_spec_binned_0, double dDda, std::string out_dir, std::string suffix)
void	print_rho_map (const Mesh &delta, const Sim_Param &sim, std::string out_dir, std::string suffix)
void	print_projected_rho (const Mesh &delta, const Sim_Param &sim, std::string out_dir, std::string suffix)
void	print_dens_bin (const std::vector< size_t > &dens_binned, std::string out_dir, std::string suffix)
template void	print_par_pos_cut_small (const std::vector< Particle_x< double >> &, const Sim_Param &, std::string, std::string)
template void	print_par_pos_cut_small (const std::vector< Particle_v< double >> &, const Sim_Param &, std::string, std::string)

Detailed Description

functions handling output of the program

Author

Michal Vrastil

Date

2018-07-11

Definition in file core_out.cpp.

Macro Definition Documentation

#define BUFF_SIZE   1024 * 1024 * 16

Definition at line 16 of file core_out.cpp.

#define HALF_THICKNESS   2

Referenced by print_rho_map().

#define MAX_SIZE   512

Referenced by print_rho_map().

Function Documentation

void create_dir

(

const std::string &

out_dir

)

Definition at line 74 of file core_out.cpp.

References ccl_test_distances::path.

Referenced by App_Var< T >::Impl< T >::create_work_dir(), and TEST_CASE().

{
    const fs::path dir(out_dir.c_str());
    if(fs::create_directories(dir))
    {
        BOOST_LOG_TRIVIAL(debug) << "Directory created: "<< out_dir;
    }
}

std::string currentDateTime

(

)

Definition at line 41 of file core_out.cpp.

Referenced by std_out_dir().

{
    const time_t     now = time(0);
    struct tm  tstruct;
    char       buf[80];
    gmtime_r(&now, &tstruct);
    strftime(buf, sizeof(buf), "%y%m%d_%H%M%S", &tstruct);

    std::string returnval(buf);
    return returnval;
}

template<typename T >

bool is_err	(	const std::vector< T > &	vec1,
		const std::vector< T > &	vec2,
		size_t	bin
	)

Definition at line 197 of file core_out.cpp.

References rel_error(), growth_allz::T, and Catch::Generators::value().

Referenced by print_pow_spec_diff(), and print_vel_pow_spec_diff().

{
    const T err = rel_error( vec1[bin], vec2[bin]);
    constexpr T prec_err = std::is_same<T, float>::value ? 1e-3f : 1e-7;
    constexpr T prec_war = std::is_same<T, float>::value ? 1e-5f : 1e-12;

    if (err > prec_err){
        BOOST_LOG_TRIVIAL(error) << "ERROR! Different values of k in bin " << bin << "! Relative error = " << err;
        return true;
    }
    else if (err > prec_war) BOOST_LOG_TRIVIAL(warning) << "WARNING! Different values of k in bin " << bin << "! Relative error = " << err;
    return false;
}

void print_corr_func	(	const Data_Vec< double, 2 > &	pwr_spec_binned,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 174 of file core_out.cpp.

References Data_Vec< T, N >::size().

Referenced by App_Var< T >::Impl< T >::print_corr().

{
    out_dir += "corr_func/";
    std::string file_name = out_dir + "corr_func" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing correlation function into file " << file_name;
    File << "# This file contains correlation function depending on distance r in units [Mpc/h].\n"
            "# x [Mpc/h]\txsi(r)\n";

    const size_t N = pwr_spec_binned.size();
    for (size_t j = 0; j < N; j++){
        if (pwr_spec_binned[1][j]) File << pwr_spec_binned[0][j] << "\t" << pwr_spec_binned[1][j] << "\n";
    }
}

void print_dens_bin	(	const std::vector< size_t > &	dens_binned,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 402 of file core_out.cpp.

References print_par_pos_cut_small().

Referenced by App_Var< T >::Impl< T >::print_density().

                                                                                              {
    out_dir += "rho_bin/";
    std::string file_name = out_dir + "rho_bin" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing binned density into file " << file_name;
    File << "# This file contains binned density field.\n"
            "# dens\tbin_num\n";
    FTYPE_t dens;
    const size_t N = dens_binned.size();
    for (size_t j = 0; j < N; j++)
    {
        dens = j*0.1-0.9;
        File << dens << "\t" << dens_binned[j] << "\n";
    }
}

template<class T >

void print_par_pos_cut_small	(	const std::vector< T > &	particles,
		const Sim_Param &	sim,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 109 of file core_out.cpp.

References Sim_Param::box_opt, Box_Opt::mesh_num, Box_Opt::par_num, x, Sim_Param::x_0(), and z.

Referenced by print_dens_bin(), and App_Var< T >::Impl< T >::print_position().

{
   out_dir += "par_cut/";
   std::string file_name = out_dir + "par_cut" + suffix + ".dat";
   Ofstream File(file_name);

   BOOST_LOG_TRIVIAL(debug) << "Writing small cut through the box of particles into file " << file_name;
   File << "# This file contains positions of particles in units [Mpc/h].\n";
   FTYPE_t x, y, z, dx;
   const FTYPE_t x_0 = sim.x_0();
   const size_t N = sim.box_opt.par_num;
   for(size_t i=0; i < N; i++)
   {
       x = particles[i].position[0];
       y = particles[i].position[1];
       z = particles[i].position[2];
       dx = std::abs(y - sim.box_opt.mesh_num/2);
       if ((dx < 0.5) && (x < sim.box_opt.mesh_num/4.) && (z < sim.box_opt.mesh_num/4.))
       {
           // cut (L/4 x L/4 x 0.5)
           File << x*x_0 << "\t" << z*x_0 << "\t" << y*x_0 << "\n";
       }
   }
}

template void print_par_pos_cut_small	(	const std::vector< Particle_x< double >> &	,
		const Sim_Param &	,
		std::string	,
		std::string
	)

template void print_par_pos_cut_small	(	const std::vector< Particle_v< double >> &	,
		const Sim_Param &	,
		std::string	,
		std::string
	)

void print_pow_spec	(	const Data_Vec< double, 2 > &	pwr_spec_binned,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 134 of file core_out.cpp.

References Data_Vec< T, N >::size().

Referenced by App_Var< T >::Impl< T >::print_extrap_pwr(), App_Var< T >::Impl< T >::print_input_realisation(), App_Var_Chi::print_output(), and App_Var< T >::Impl< T >::print_power_spec().

{
    out_dir += "pwr_spec/";
    std::string file_name = out_dir + "pwr_spec" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing power spectrum into file " << file_name;
    File << "# This file contains power spectrum P(k) in units [(Mpc/h)^3] depending on wavenumber k in units [h/Mpc].\n"
            "# k [h/Mpc]\tP(k) [(Mpc/h)^3]\n";

    File << std::scientific;
    const size_t size = pwr_spec_binned.size();
    for (size_t j = 0; j < size; j++){
        for (size_t i = 0; i < 2; i++){
            File << pwr_spec_binned[i][j] << "\t";
        }
        File << "\n";
    }
}

void print_pow_spec_diff	(	const Data_Vec< double, 2 > &	pwr_spec_binned,
		const Data_Vec< double, 2 > &	pwr_spec_binned_0,
		double	growth,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 211 of file core_out.cpp.

References is_err(), pow2(), and Data_Vec< T, N >::size().

Referenced by App_Var< T >::Impl< T >::print_power_spec().

{
    out_dir += "pwr_diff/";
    std::string file_name = out_dir + "pwr_spec_diff" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing power spectrum difference into file " << file_name;
    File << "# This file contains relative difference between power spectrum P(k)\n"
            "# and lineary extrapolated power spectrum of initial position of particles\n"
            "# depending on wavenumber k in units [h/Mpc].\n"
            "# k [h/Mpc]\t(P(k, z)-P_lin(k, z))/P_lin(k, z)\n";

    FTYPE_t P_k, P_lin;
    File << std::setprecision(10);
    const size_t size = pwr_spec_binned.size();
    for (size_t j = 0; j < size; j++){
        if (is_err(pwr_spec_binned[0], pwr_spec_binned_0[0], j)) continue;
        P_k = pwr_spec_binned[1][j];
        P_lin = pwr_spec_binned_0[1][j] * pow2(growth);
        File << std::scientific << pwr_spec_binned_0[0][j] << "\t" << std::fixed << (P_k-P_lin)/P_lin << "\n";
    }
}

void print_pow_spec_diff	(	const Data_Vec< double, 2 > &	pwr_spec_binned,
		const Interp_obj &	pwr_spec_input,
		double	growth,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 235 of file core_out.cpp.

References pow2(), Data_Vec< T, N >::size(), Interp_obj::x_max, and Interp_obj::x_min.

{
    out_dir += "pwr_diff/";
    std::string file_name = out_dir + "pwr_spec_diff" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing power spectrum difference into file " << file_name;
    File << "# This file contains relative difference between power spectrum P(k)\n"
            "# and lineary extrapolated input power spectrum\n"
            "# depending on wavenumber k in units [h/Mpc].\n"
            "# k [h/Mpc]\t(P(k, z)-P_lin(k, z))/P_lin(k, z)\n";

    FTYPE_t k, P_k, P_lin;
    const size_t size = pwr_spec_binned.size();
    for (size_t j = 0; j < size; j++){
        k = pwr_spec_binned[0][j];
        if (k < pwr_spec_input.x_min) continue;
        else if(k > pwr_spec_input.x_max) break;
        else
        {
            P_k = pwr_spec_binned[1][j];
            P_lin = pwr_spec_input(k) * pow2(growth);
            File << std::scientific << k << "\t" << std::fixed << (P_k-P_lin)/P_lin << "\n";
        }
    }
}

void print_pow_spec_diff	(	const Data_Vec< double, 2 > &	pwr_spec_binned,
		const Data_Vec< double, 2 > &	pwr_spec_binned_0,
		const Interp_obj &	pwr_spec_input,
		double	growth_now,
		double	growth_init,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 263 of file core_out.cpp.

References is_err(), pow2(), Data_Vec< T, N >::size(), Interp_obj::x_max, and Interp_obj::x_min.

{
    out_dir += "pwr_diff/";
    std::string file_name = out_dir + "pwr_spec_diff" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing power spectrum difference into file " << file_name;
    File << "# This file contains relative difference between power spectrum P(k)\n"
            "# and lineary extrapolated 'hybrid' power spectrum\n"
            "# depending on wavenumber k in units [h/Mpc].\n"
            "# k [h/Mpc]\t(P(k, z)-P_lin(k, z))/P_lin(k, z)\n";

    FTYPE_t k, P_k, P_input, P_par;
    File << std::setprecision(10);
    const size_t size = pwr_spec_binned.size();
    for (size_t j = 0; j < size; j++){
        if (is_err(pwr_spec_binned[0], pwr_spec_binned_0[0], j)) continue;
        k = pwr_spec_binned_0[0][j];
        if (k < pwr_spec_input.x_min) continue;
        else if(k > pwr_spec_input.x_max) break;
        else
        {
            P_k = pwr_spec_binned[1][j];
            P_input = pwr_spec_input(k) * pow2(growth_now);
            P_par = pwr_spec_binned_0[1][j] * pow2(growth_now / growth_init);
            File << std::scientific << k << "\t" << std::fixed << P_k/P_input - P_k/P_par << "\n";
        }
    }
}

void print_projected_rho	(	const Mesh &	delta,
		const Sim_Param &	sim,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 376 of file core_out.cpp.

References Sim_Param::box_opt, Box_Opt::mesh_num_pwr, and Sim_Param::x_0_pwr().

{
    out_dir += "rho_map/";
    const FTYPE_t x_0 = sim.x_0_pwr();
    std::string file_name = out_dir + "rho_map_projected" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing density map into file " << file_name << "\n";
    File << "# This file contains density map delta(x).\n"
            "# x [Mpc/h]\tz [Mpc/h]\tdelta\n";
    FTYPE_t rho, rho_tmp;
    const size_t N = sim.box_opt.mesh_num_pwr;
    for (size_t i = 0; i < N; i++){
        for (size_t j = 0; j < N; j++){
            rho = 0;
            for (size_t k = 0; k < N; k++){
                rho_tmp = delta(i, k, j);
            //  if (rho_tmp != -1) printf("Density in (%i, %i, %i) = %f\n", i, j, k, rho_tmp);
                rho+=rho_tmp + 1;
            }
            File << i*x_0 << "\t" << j*x_0 << "\t" << rho -1 << "\n";
        }
        File << "\n";
    }
}

void print_rho_map	(	const Mesh &	delta,
		const Sim_Param &	sim,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 317 of file core_out.cpp.

References Sim_Param::box_opt, HALF_THICKNESS, MAX_SIZE, Box_Opt::mesh_num_pwr, and Sim_Param::x_0_pwr().

Referenced by App_Var< T >::Impl< T >::print_density().

{
    out_dir += "rho_map/";
    const FTYPE_t x_0 = sim.x_0_pwr();
    std::string file_name = out_dir + "rho_map" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing density map into file " << file_name;
    File << "# This file contains density map delta(x).\n";
    File << "# x [Mpc/h]\tz [Mpc/h]\tdelta\n";

    #define HALF_THICKNESS  2
    #define MAX_SIZE        512
    // create buffer into which we can write in parallel
    // smear density field if we have very hight accuracy
    const size_t N = sim.box_opt.mesh_num_pwr;
    const size_t N_step = N  > MAX_SIZE ? N / MAX_SIZE : 1;
    std::vector<FTYPE_t> buffer(N/N_step*N/N_step);

    // go throught one side (in parallel)
    #pragma omp parallel for
    for (size_t i = 0; i < N; i += N_step)
    {
        for (size_t j = 0; j < N; j += N_step)
        {
            // average over one side, add up 3rd dimension
            FTYPE_t proj_delta = 0;
            for (size_t i_xx = 0; i_xx < N_step; i_xx++)
            {
                for (size_t j_xx = 0; j_xx < N_step; j_xx++)
                {
                    for (int k = -HALF_THICKNESS; k < HALF_THICKNESS; k++)
                    {
                        // we are at [i+i_xx, N/2 + k, j+j_xx]
                        proj_delta += delta(i+i_xx, sim.box_opt.mesh_num_pwr/2 + k, j+j_xx) + 1;
                    }
                }
            }
            // average and save
            proj_delta /= N_step*N_step;
            proj_delta--;
            size_t id = (i/N_step) * (N/N_step) + j/N_step;
            buffer[id] = proj_delta;
        }
    }

    // write into file
    for (size_t i = 0; i < N; i += N_step)
    {
        for (size_t j = 0; j < N; j += N_step)
        {
            size_t id = (i/N_step) * (N/N_step) + j/N_step;
            FTYPE_t proj_delta = buffer[id];
            File << i*x_0 << "\t" << j*x_0 << "\t" << proj_delta << "\n";
        }
        File << "\n";
    }
}

void print_vel_pow_spec	(	const Data_Vec< double, 2 > &	pwr_spec_binned,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 154 of file core_out.cpp.

References Data_Vec< T, N >::size().

Referenced by App_Var< T >::Impl< T >::print_vel_pwr().

{
    out_dir += "vel_pwr_spec/";
    std::string file_name = out_dir + "vel_pwr_spec" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing velocity divergence power spectrum into file " << file_name;
    File << "# This file contains velocity divergence power spectrum P(k) in units [(Mpc/h)^3] depending on wavenumber k in units [h/Mpc].\n"
            "# k [h/Mpc]\tP(k) [(Mpc/h)^3]\n";

    File << std::scientific;
    const size_t size = pwr_spec_binned.size();
    for (size_t j = 0; j < size; j++){
        for (size_t i = 0; i < 2; i++){
            File << pwr_spec_binned[i][j] << "\t";
        }
        File << "\n";
    }
}

void print_vel_pow_spec_diff	(	const Data_Vec< double, 2 > &	pwr_spec_binned,
		const Data_Vec< double, 2 > &	pwr_spec_binned_0,
		double	dDda,
		std::string	out_dir,
		std::string	suffix
	)

Definition at line 294 of file core_out.cpp.

References is_err(), pow2(), and Data_Vec< T, N >::size().

Referenced by App_Var< T >::Impl< T >::print_vel_pwr().

{
    out_dir += "vel_pwr_diff/";
    std::string file_name = out_dir + "vel_pwr_spec_diff" + suffix + ".dat";
    Ofstream File(file_name);

    BOOST_LOG_TRIVIAL(debug) << "Writing power velocity divergence spectrum difference into file " << file_name;
    File << "# This file contains relative difference between velocity divergence power spectrum P(k)\n"
            "# and lineary extrapolated velocity divergence power spectrum depending on wavenumber k in units [h/Mpc].\n"
            "# k [h/Mpc]\t(P(k, z)-P_lin(k, z))/P_lin(k, z)\n";

    FTYPE_t P_k, P_ZA;
    File << std::setprecision(10);
    const size_t size = pwr_spec_binned.size();
    for (size_t j = 0; j < size; j++){
        if (is_err(pwr_spec_binned[0], pwr_spec_binned_0[0], j)) continue;
        P_k = pwr_spec_binned[1][j];
        P_ZA = pwr_spec_binned_0[1][j] * pow2(dDda);
        File << std::scientific << pwr_spec_binned_0[0][j] << "\t" << std::fixed << (P_k-P_ZA)/P_ZA << "\n";
    }
}

template<typename T >

T rel_error	(	const T &	a,
		const T &	b
	)

Definition at line 191 of file core_out.cpp.

Referenced by is_err().

{
    return a ? fabs((a-b)/a) : fabs(a-b);
}

void remove_all_files

(

const std::string &

out_dir

)

Definition at line 92 of file core_out.cpp.

References p, and ccl_test_distances::path.

Referenced by TEST_CASE().

{
    const fs::path dir(out_dir.c_str());
    size_t i = 0;

    for(auto & p : fs::directory_iterator(dir))
    {
        if (fs::is_regular_file(p))
        {
            fs::remove(p);
            ++i;
        }
    }
    BOOST_LOG_TRIVIAL(debug) << "Removed " << i << " file(s) in directory: "<< out_dir;
}

void remove_dir

(

const std::string &

out_dir

)

Definition at line 83 of file core_out.cpp.

References ccl_test_distances::path.

{
    const fs::path dir(out_dir.c_str());
    if (fs::remove_all(dir))
    {
        BOOST_LOG_TRIVIAL(debug) << "Directory removed: "<< out_dir;
    }
}

std::string std_out_dir	(	const std::string &	pre_subdir,
		const Sim_Param &	sim
	)

directory name = YYMMDD_HHMMSS_m_p_M_b

check if directory exists

try appending numbers starting at 2

Definition at line 53 of file core_out.cpp.

References Sim_Param::box_opt, Box_Opt::box_size, currentDateTime(), exists(), Box_Opt::mesh_num, Box_Opt::mesh_num_pwr, Box_Opt::Ng, Out_Opt::out_dir, Sim_Param::out_opt, and ccl_test_distances::path.

{
    const std::string out_dir = sim.out_opt.out_dir + pre_subdir + currentDateTime() + "_" + std::to_string(sim.box_opt.mesh_num) +"m_" +
                      std::to_string(sim.box_opt.Ng) + "p_" + std::to_string(sim.box_opt.mesh_num_pwr) +"M_" +
                      std::to_string((size_t)sim.box_opt.box_size) + "b";

    if (!fs::exists(fs::path(out_dir.c_str()))) return out_dir + "/";

    else
    {
        for(size_t i = 2; ; ++i)
        {
            const std::string out_dir_new = out_dir  + "_" + std::to_string(i);
            if (!fs::exists(fs::path(out_dir_new.c_str()))) return out_dir_new + "/";
        }
    }
}
